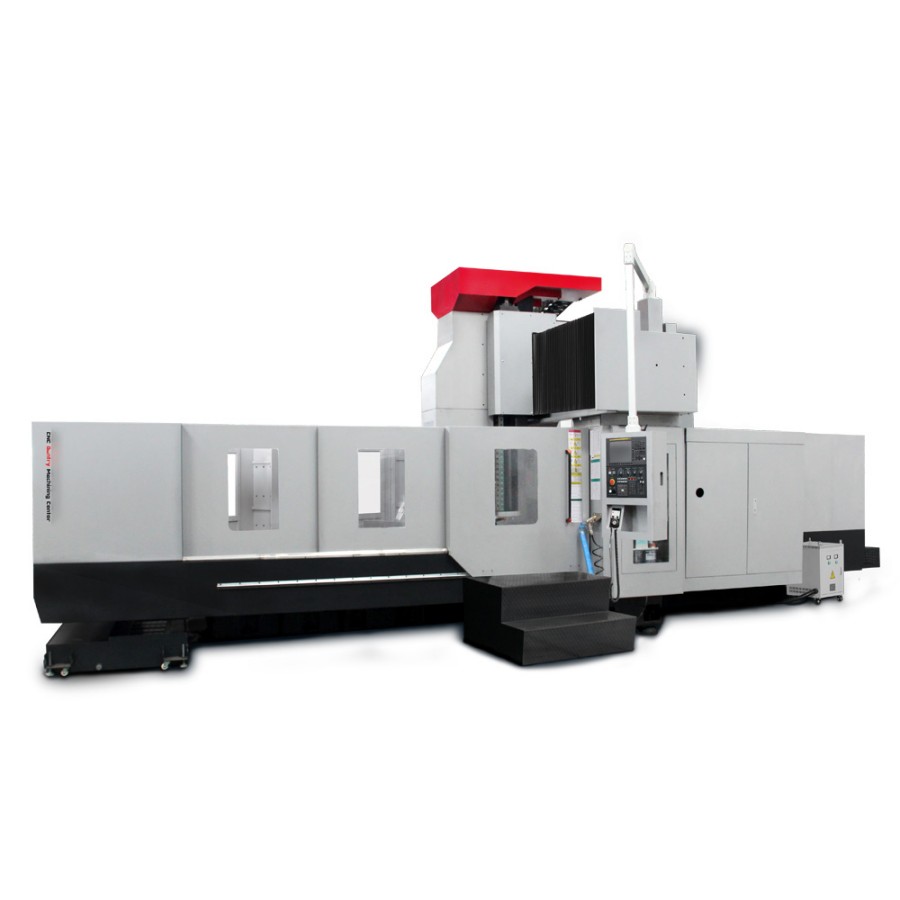

Heavy duty Gantry Machining Center for High-Precision Industrial Manufacturing This advanced gantry
machining center represents the pinnacle of precision engineering and industrial automation, designed specifically for high-efficiency processing of large and heavy components across demanding sectors such as aerospace, energy systems, and mold fabrication. Built on a rigid cast-iron frame with dual-column architecture, this machine ensures exceptional vibration damping and thermal stability during intensive milling, drilling, and tapping operations—whether working with steel, cast iron, or lightweight aluminum alloys. Its spacious travel table and robust linear drive system enable seamless handling of oversized workpieces, making it an ideal solution for manufacturers seeking both throughput and accuracy in mass production environments. Key Features: - High-strength monolithic bed design enhances structural rigidity and minimizes deflection under load - Optional high-speed spindle (12,000–20,000 RPM) delivers rapid material removal while maintaining surface finish quality - Automatic tool changer with 30+ position capacity supports unattended operation and complex multi-step processes -
five-axis capability allows for intricate contouring and simultaneous multi-directional
machining of complex geometries - Integrated intelligent CNC compensation (Siemens, Fanuc compatible) achieves sub-millimeter positional accuracy (±0.005mm) - Advanced servo-driven axes ensure smooth motion control and consistent repeatability over extended periods The machine’s intelligent control system continuously monitors and adjusts for thermal drift, tool wear, and mechanical stress, ensuring sustained performance without manual recalibration. This level of automation reduces operator intervention, lowers downtime, and improves overall equipment effectiveness (OEE). The modular design also facilitates future upgrades, including integration with Industry 4.0 platforms for predictive maintenance and real-time data analytics—key factors in modern smart factories aiming to reduce waste and optimize productivity. Ideal for applications requiring precision in large-scale manufacturing, this
Gantry System excels in producing turbine blades, engine casings, die sets, and structural components where dimensional consistency and surface integrity are critical. It is particularly suited for facilities engaged in prototyping, mid-to-high volume production, and high-tolerance machining tasks that demand minimal human error and maximum repeatability. Users consistently praise its reliability in continuous operation, noting significant reductions in cycle times and improved part quality compared to conventional
vertical machining centers. Operators appreciate the intuitive interface and clear diagnostic feedback, which streamline setup and troubleshooting. Many report that the machine's ability to handle mixed materials—from titanium alloys to composite structures—makes it a versatile asset in diverse manufacturing workflows. Frequently Asked Questions: What makes this gantry machine different from standard CNC mills? Unlike traditional vertical or
Horizontal mills, this gantry configuration offers superior rigidity, larger workspace, and enhanced dynamic stability when cutting heavy materials at high speeds. Its open-frame structure provides better accessibility and chip evacuation, especially important for deep cavity milling and long-part machining. Can it be integrated into existing automated production lines? Yes, the machine supports standardized communication protocols like Ethernet/IP and OPC UA, allowing easy integration into robotic cells, conveyor systems, or digital twin environments for end-to-end process optimization. Is training required for operators? While basic CNC knowledge is beneficial, the user-friendly interface and built-in guidance tools simplify learning curves. Most users achieve full operational proficiency within one week of hands-on practice. How does it maintain accuracy over time? Through intelligent feedback loops and automatic calibration routines, the system compensates for environmental changes and mechanical wear, preserving ±0.005mm accuracy even after thousands of hours of use.
