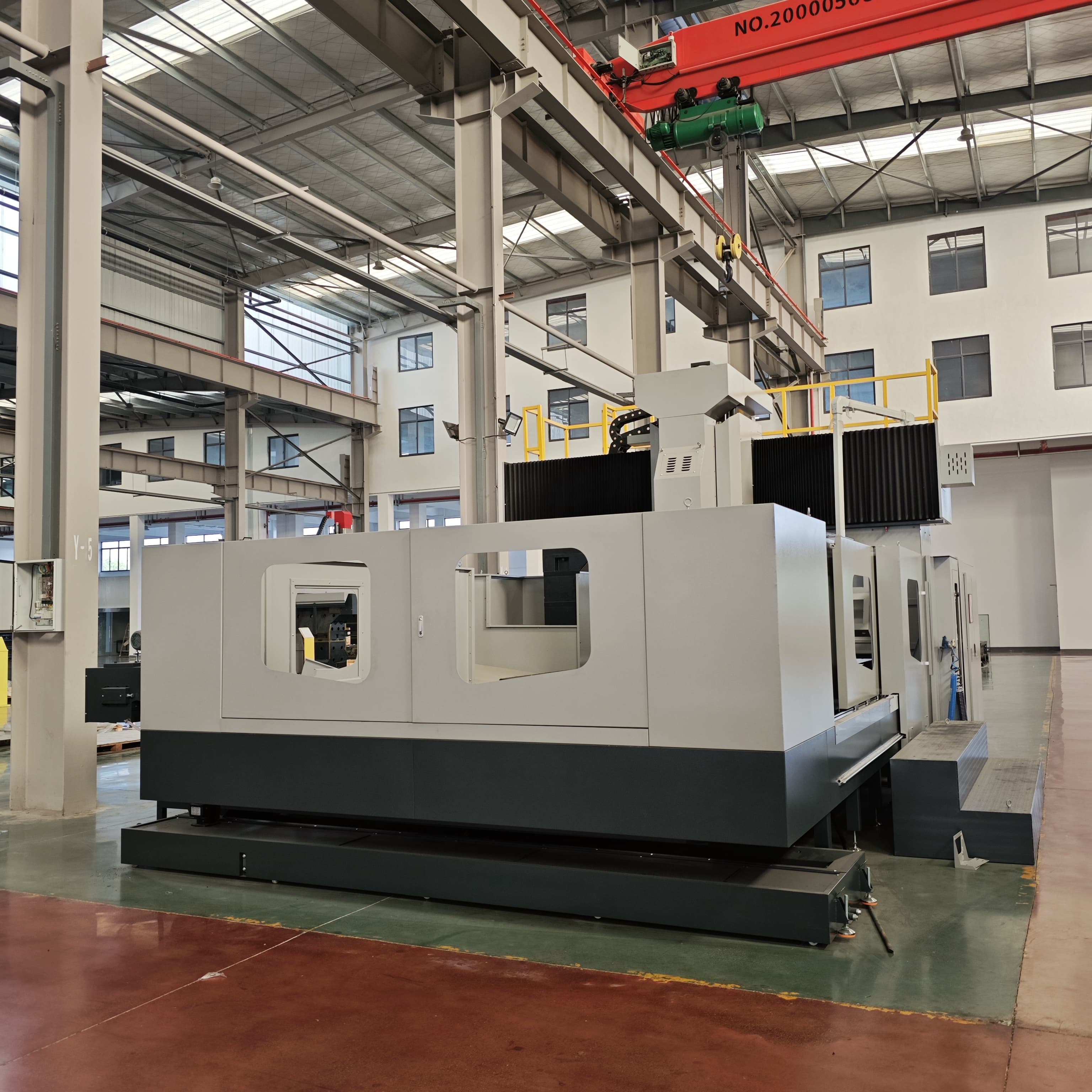

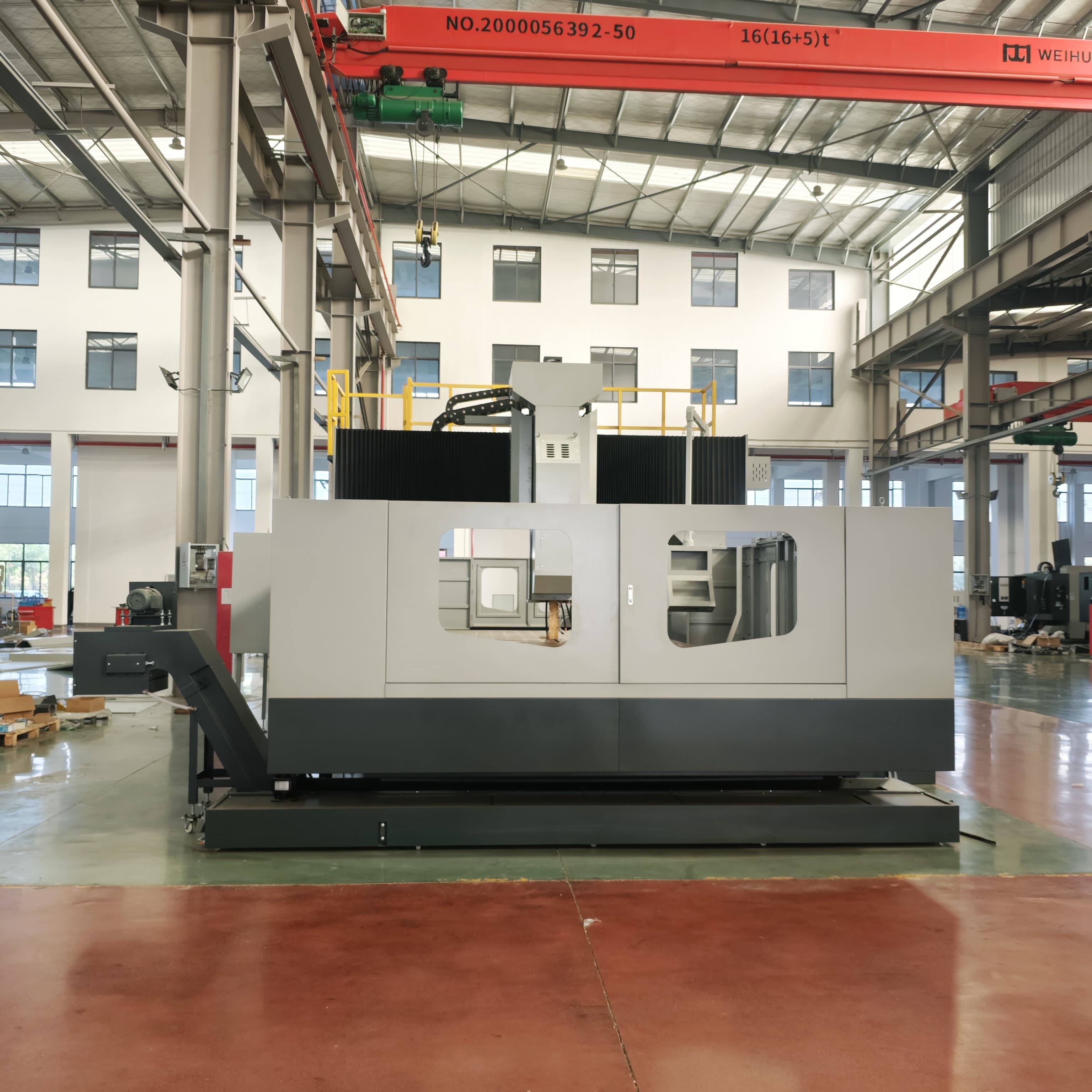

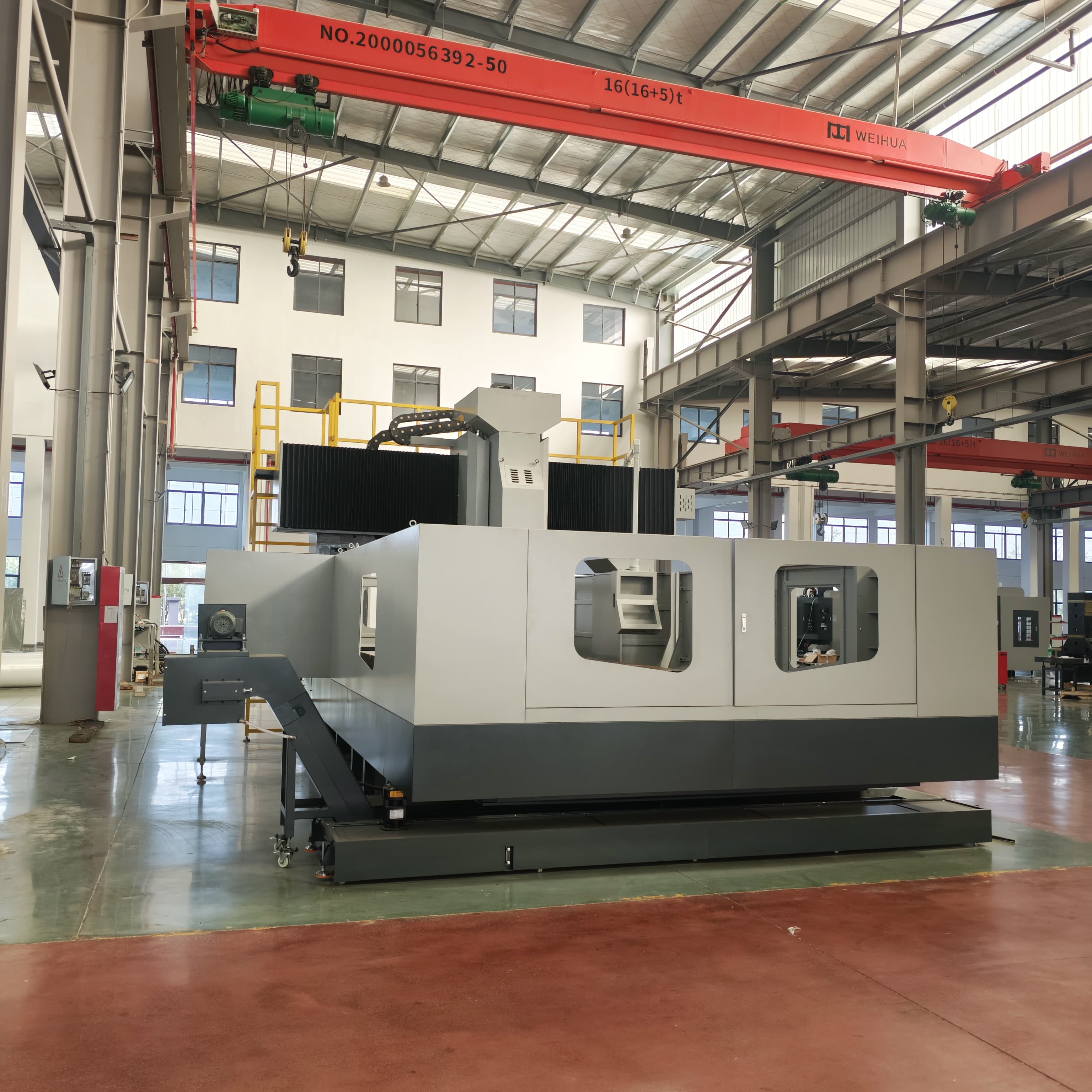

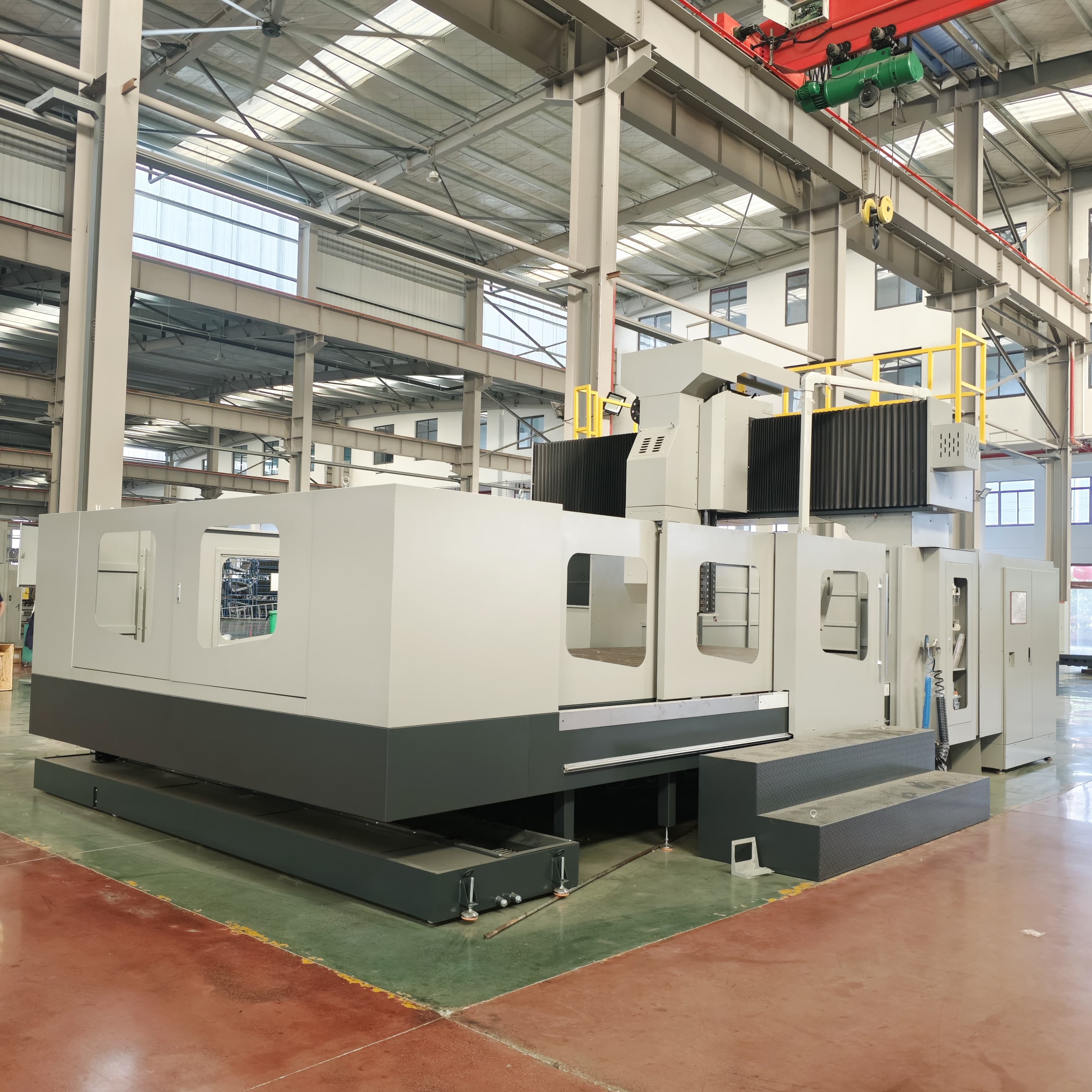

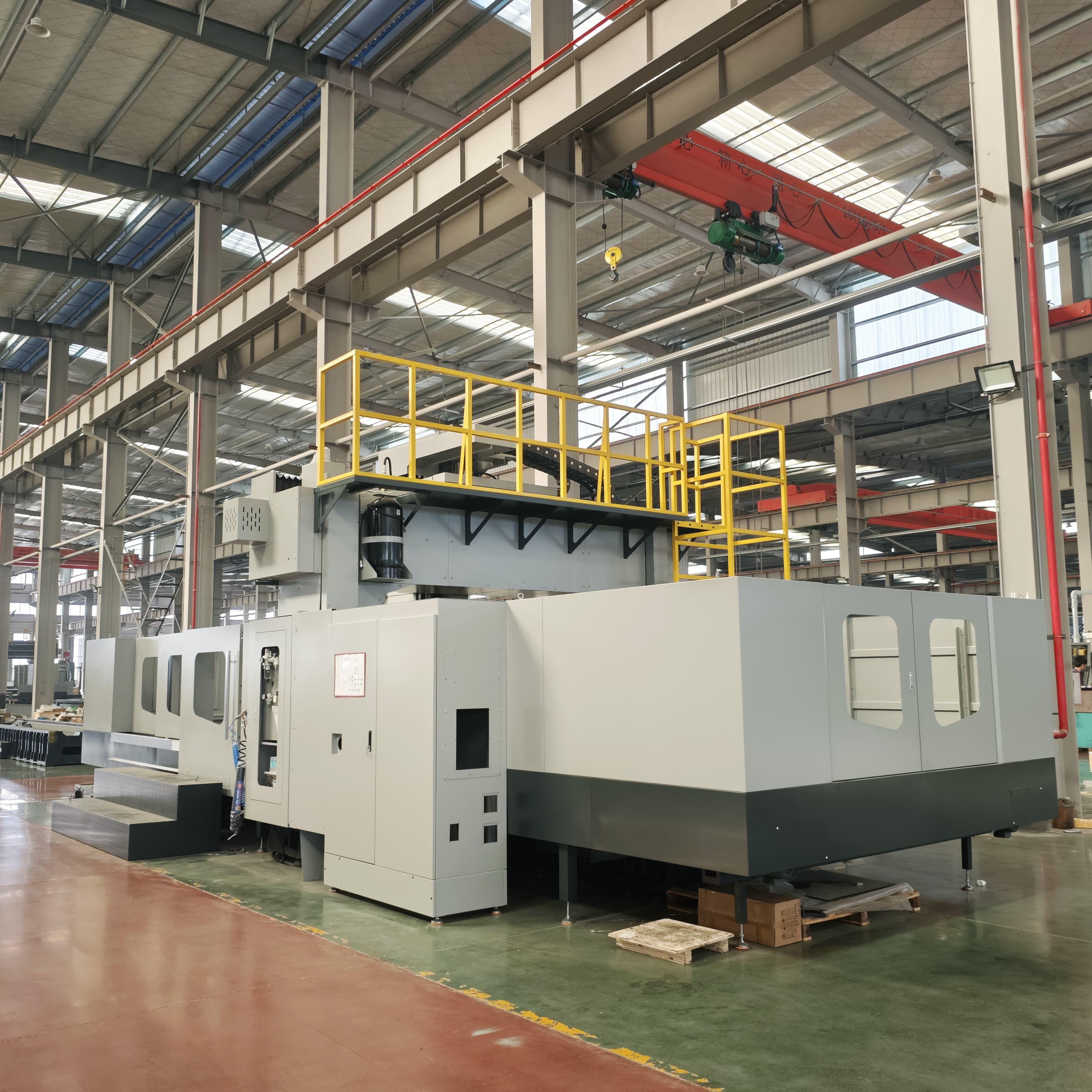

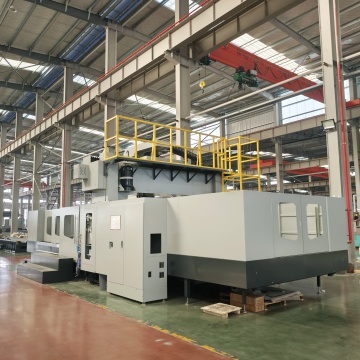

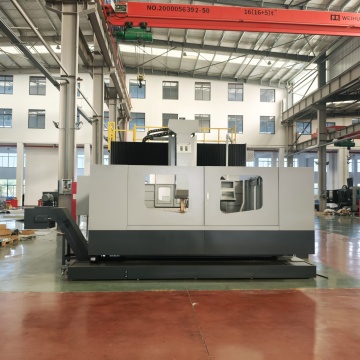

Gantry High Precision Machining Center for Heavy Duty

High - Rigidity&High - Performance Gantry Machining Center

Ultimate Stability

The interior of the bed is equipped with W - type and A - type composite rib plates, which have excellent bending and torsion resistance. It adopts a large - span linear guide rail structure, ensuring the long - term operation accuracy stability of the worktable.

The worktable uses double - layer cavity plates and densely arranged cross - shaped rib plates, reducing self - deformation and improving load - bearing capacity and seismic resistance.

The high - rigidity integrated cast column and beam structure has a large contact surface and undergoes precise manual scraping and grinding. The structure is stable, and the precision retention is good.

The column uses a rice - shaped rib plate and a large - section beam. The guide rail adopts a stepped structure, effectively suppressing the forward tilt of the machine tool and ensuring the stability of processing.

The saddle adopts a configuration of three upper and two lower sliders. The ram uses an optimized rectangular cross - section, which is beneficial for powerful cutting with small vibration deformation. The ram can be optionally configured with four linear guides on the left, right, front, and back, with four - sided constraints, making powerful heavy cutting more stable.

The three axes use high - precision large - diameter ground ball screws with axial pre - tension applied, ensuring the rigidity and stability of the transmission system.

All - round Supply and Demand

Modular ram design with a variety of spindle options (a high - rigidity rectangular sliding guide rail can be selected for the Z - axis) to meet different cutting requirements.

All cast iron structural parts are optimized by 3D design and finite element analysis, and treated with an alternating process of tempering and aging to completely eliminate the internal stress of the castings and improve the overall motion rigidity and precision retention of the machine tool.

Rotatable Control Cabinet

The rotatable pedestal - mounted control panel and the portable handwheel operation box facilitate the operator to use them at any position. The foot switch can easily perform the operation of clamping and unclamping the tool on the spindle head.

Strict Part and Assembly Inspection Process
