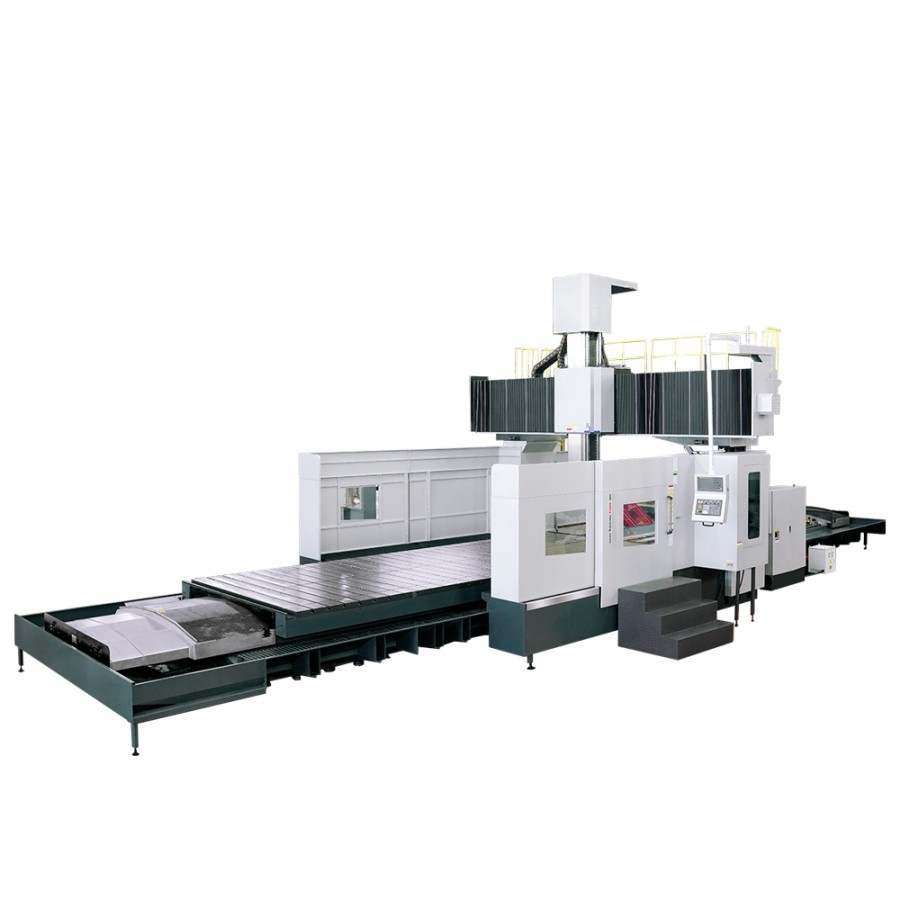

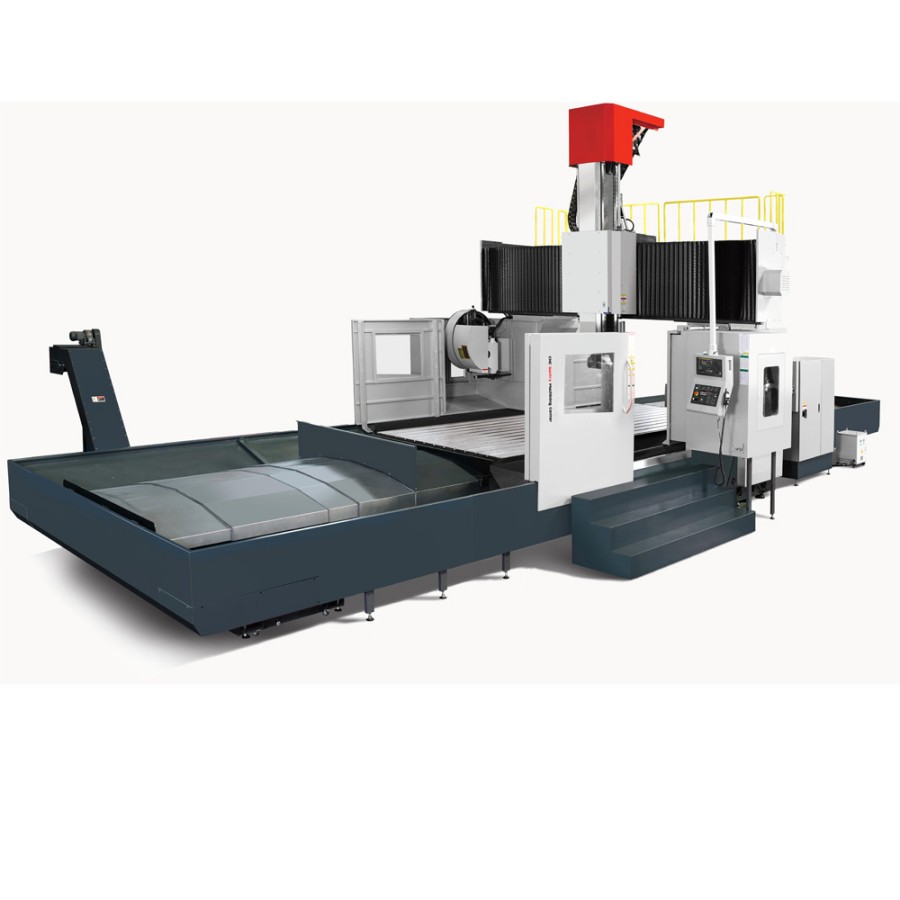

CNC Heavy gantry machine center tool

The bed is made of box type triangular reinforced plate structure, the structure is heavy, and the long-span line rail structure provides a stable operating base for the machine.

The beam adopts the diagonal back type large-section structure, the internal cable-stayed plate, the three guide rails are arranged in step, and the flipping moment is small to meet the heavy load cutting of the machine tool.

The column adopts the herringbone large-section structure and the auxiliary meter-shaped reinforcement plate, which effectively inhibits the forward tilt of the machine tool and ensures the stability of the processing.

The saddle adopts the sliding block configuration mode of upper three and lower three, and there is a sliding saddle strengthening plate in front of it, which forms a full-package structure of the back font, and the structure is stable and the deformation is small, providing stable support for the Z-axis weight cutting.

The ram adopts optimized rectangular section, high thermal stability, four-wire rail configuration, and the spindle is placed on the center line, which is conducive to strong cutting and small vibration deformation.
