Basic Info
Model NO.: CK6150
Power Source: Electric
Controlling Mode: Cnc
Automatic Grade: Automatic
Precision: High Precision
Certification: CE, ISO 9001
Condition: New
Transport Package: Wood Case
Specification: 3025x1590x1735mm
Trademark: MacTech
Origin: Jiangsu
Customization: Available
After-sales Service: on-Site Repair
Warranty: One Year
Product Description

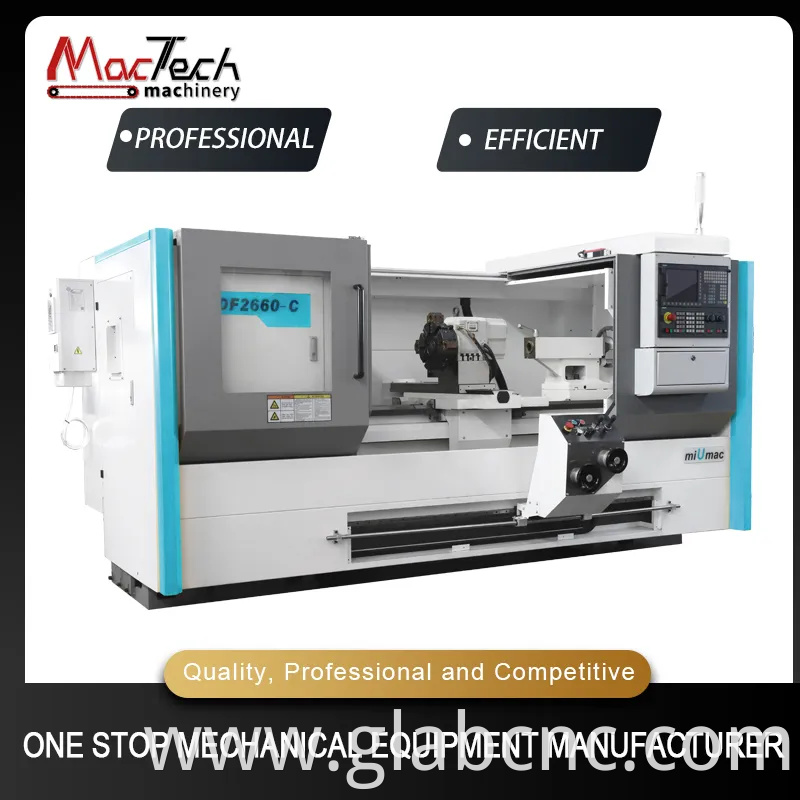

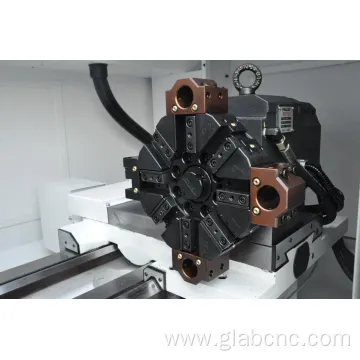

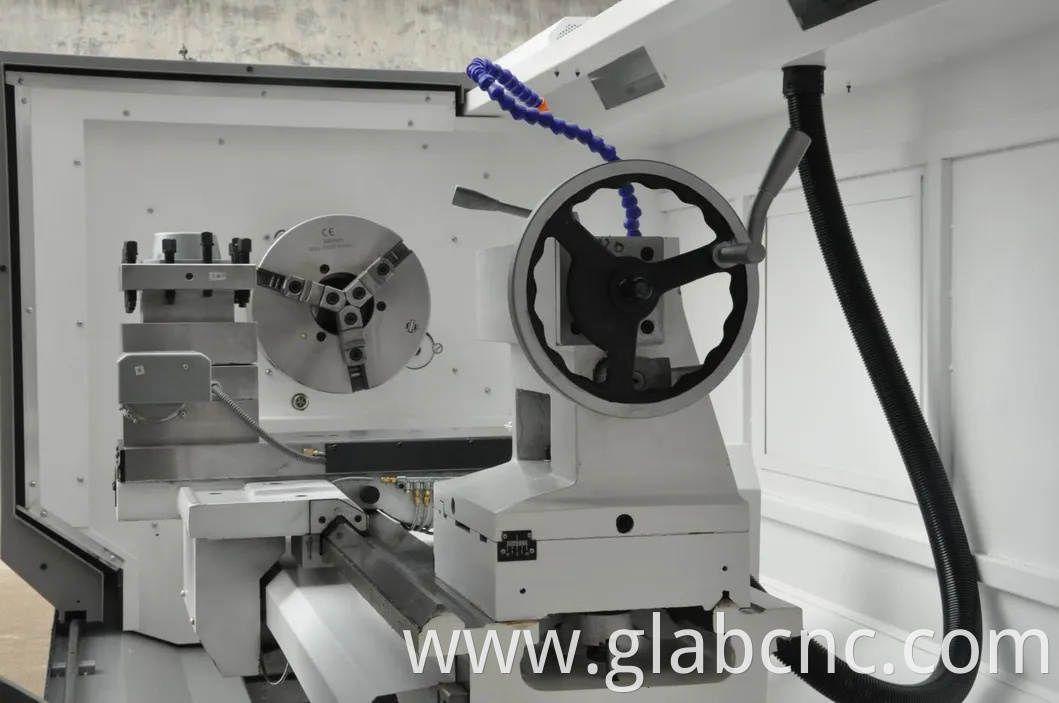

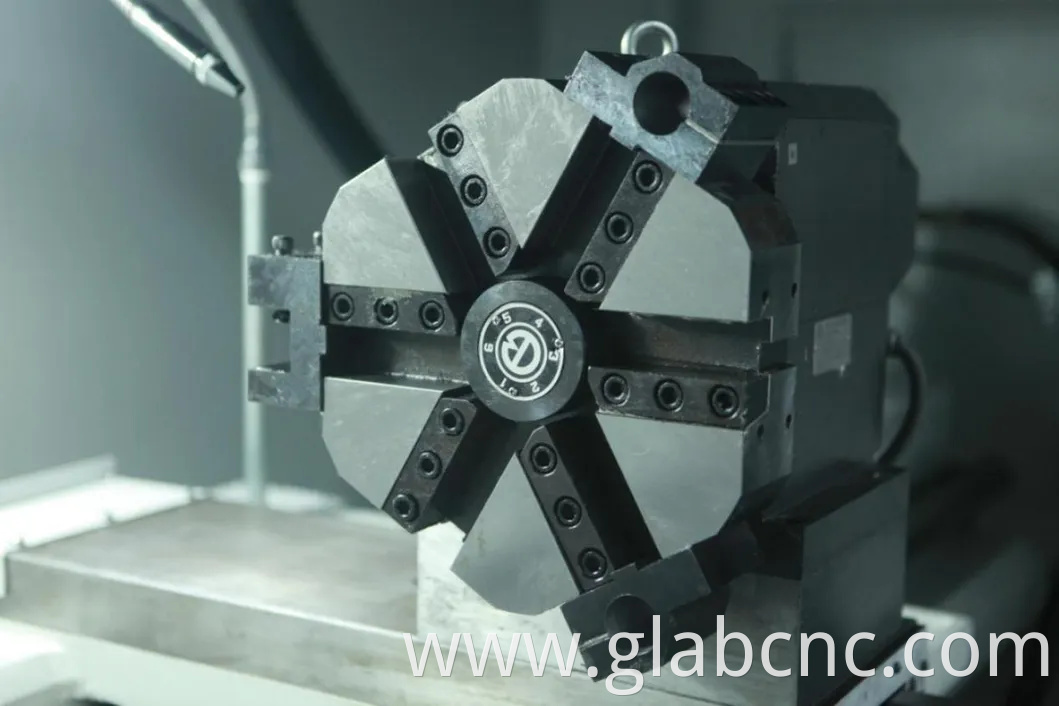

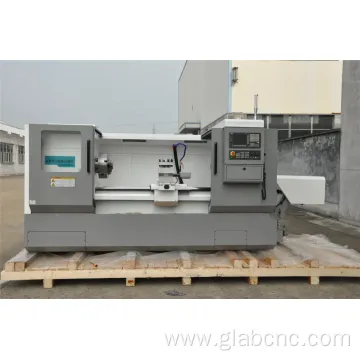

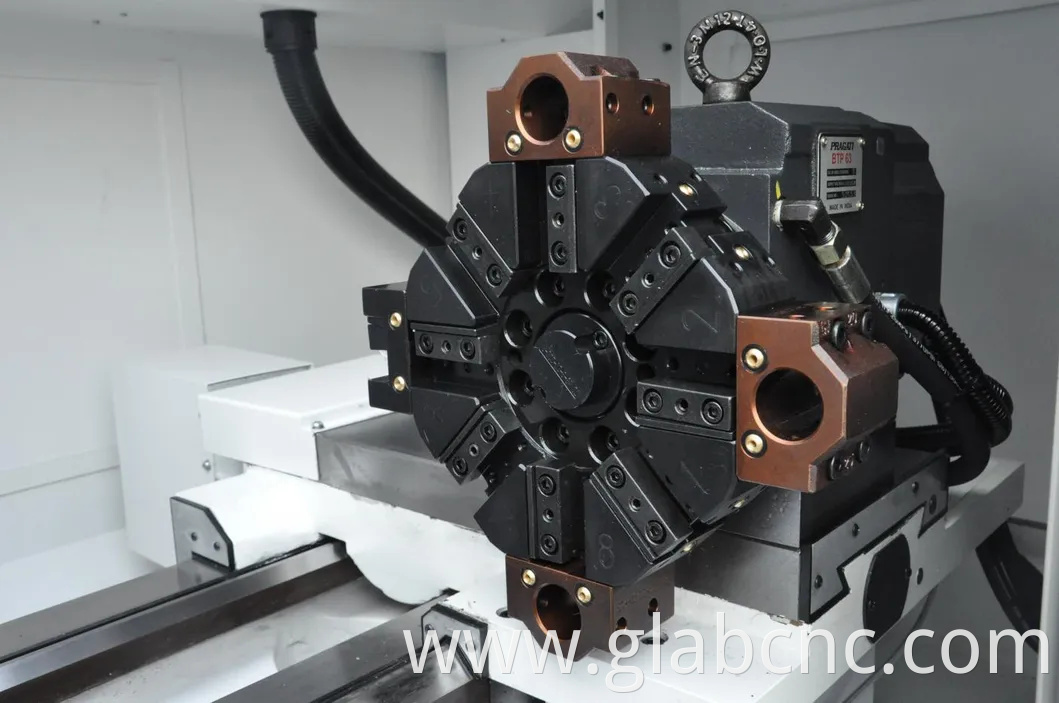

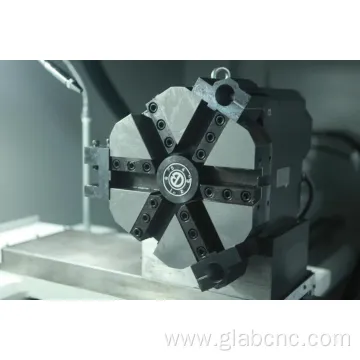

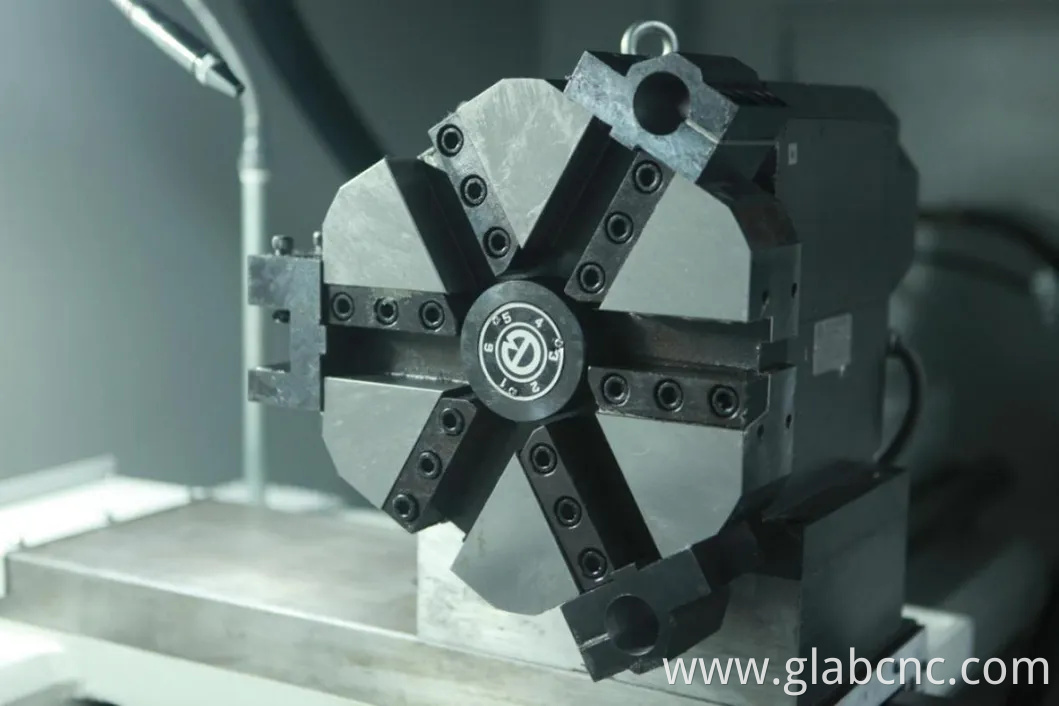

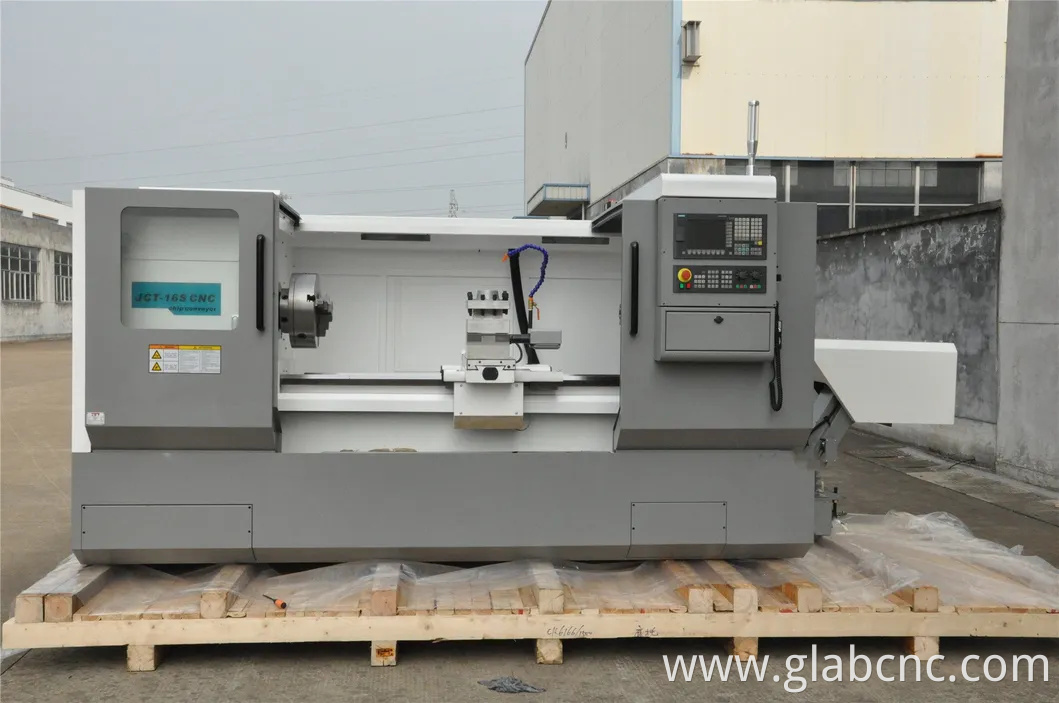

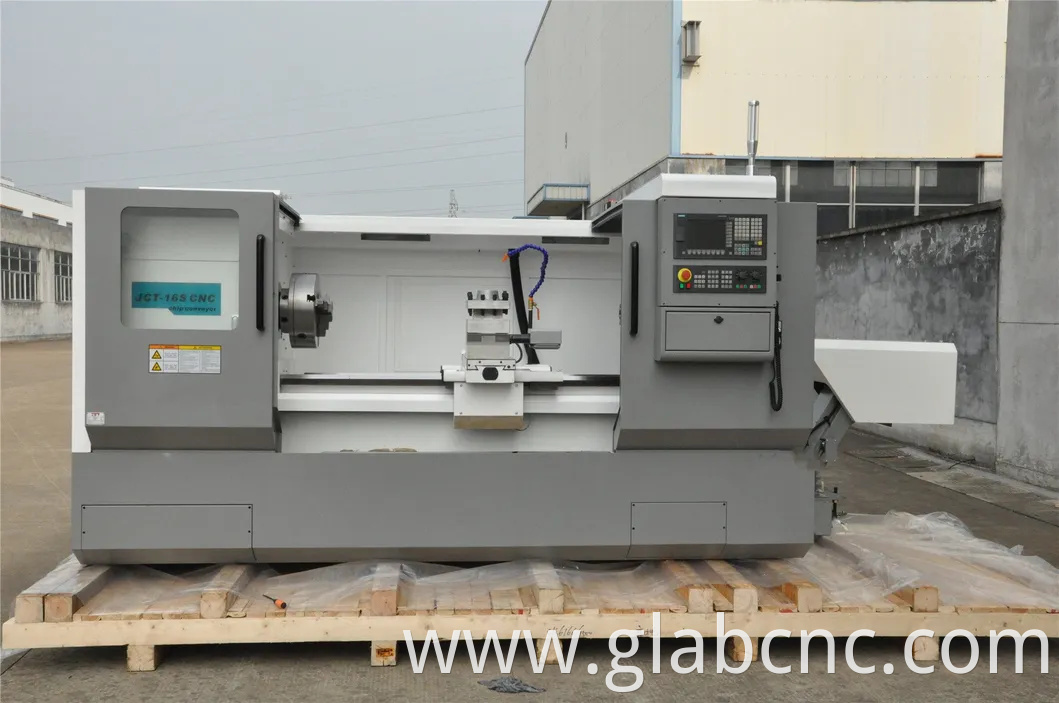

This machine is a CNC Lathe controlled by a microcomputer and driven by servo motors. It is suitable for turning cylindrical and taper faces, boring, grooving, and cutting threads (including taper threads). The machine adopts ISO International Code, Keyboard Manual Date input, and it is also provided with program of power cut-off protection and the functions of automatic diagnosis and with RS232 interface. Longitudinal and cross feeds are effected by ball leadscrews driven by servo motors. Either vertical or Horizontal 4 station or 6 station tool post or gang tools can be selected. The post is located on precision contrate gears with a high repeated positioning accuracy. Hydraulic chuck, manual chuck, manual tailstock and hydraulic tailstock are available for your choice. Infinitely variable speed change for spindle.
| Item | Unit | CK6150 |
|---|---|---|
| Processing | ||
| Max. cutting Dia. for disc parts | mm | Φ500 |
| Max. cutting Dia. for axle parts | mm | Φ290 |
| Width of bed | mm | 395 |
| Max. workpiece length | mm | 1000/1500 |
| Max. turning length | mm | 850/1350 |
| 6-way turret Max. turning length | mm | 700/1200 |
| 6-way turret Max. turning diameter | mm | Φ440 |
| Spindle | ||
| Spindle nose | A2-8 | |
| Spindle bore | mm | Ф82 |
| Taper of spindle hole | 1:20, Metric Ф90 | |
| Steps of spindle speed | 3 gears, stepless in each | |
| Range of spindle speed | rpm | 45~260, 140~280, 280~1600 |
| Feed | ||
| Rapid feed for axis Z | m/min | 8 |
| Rapid feed for axis X | m/min | 8 |
| Travel | ||
| Max. travel of axis Z | mm | 850/1350 |
| Max. travel of axis x | mm | 295 |

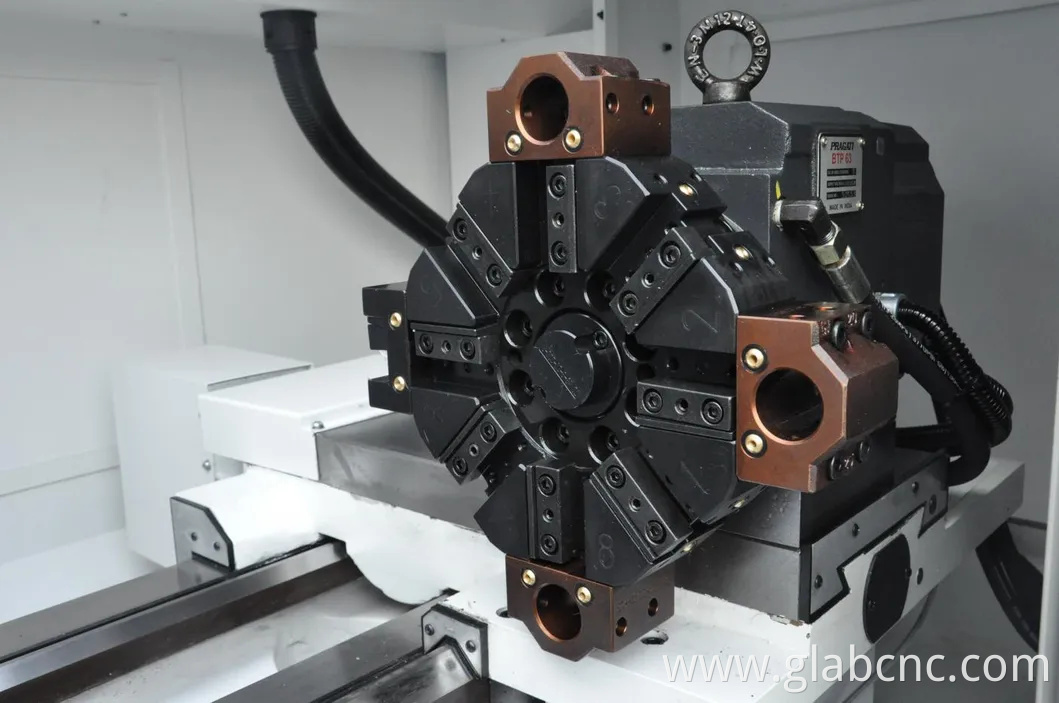

| Turret | ||
| Tool post stations | 4-stations | |
| Tool cross section | mm | 25×25 |

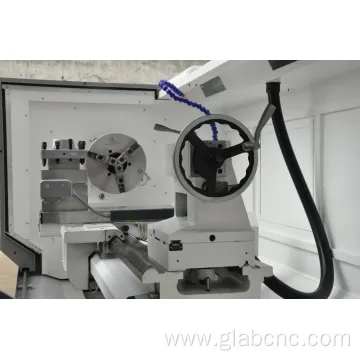

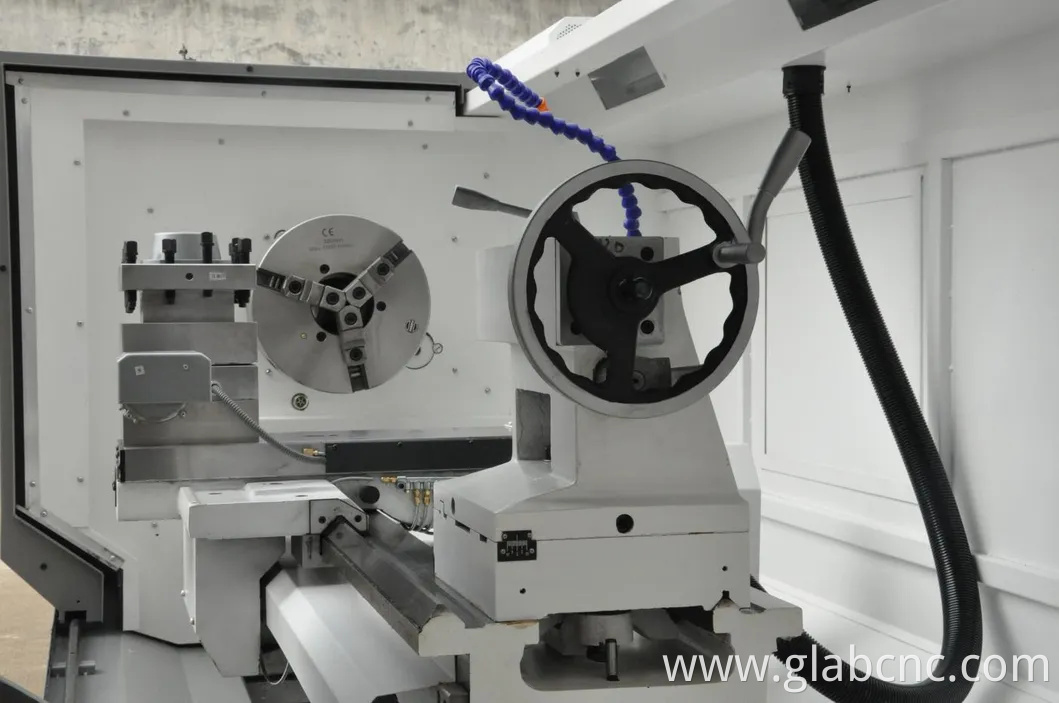

| Tailstock | ||
| External diameter | mm | Φ75 |
| Taper of tailstock sleeve | MT.No.5 | |
| Max. travel of taiistock sleeve | mm | 150 |
| Others | ||
| Min.input | 0.001 | |
| Power of main motor | kW | 7.5 |
| Power of cooling pump | W | 90 |
| 1 m overall dimensions (L×W×H) | mm | 3025x1590x1735 |
| 1 m net weight | kg | 2300 |
Product Categories : CNC Lathe
