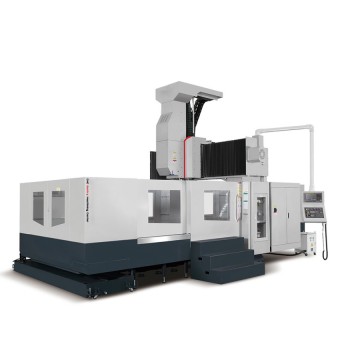

High rigid CNC Gantry lathe turning machine

Basic Info

Brand: GLAB

Status: New

Types Of: Gantry

Worktable Size (mm): 1360x700

Workbench Stroke (X) (mm): 4000

Workbench Stroke (Y) (mm): 2500

Worktable Stroke (Z) (mm): 1000

Positioning Accuracy (mm): ±0.008

Repeat Positioning Accuracy (mm): ±0.012

Core Selling Point: High-Accuracy

Warranty Period: 1 Year

Mechanical Test Report: Provided

Video Factory Inspection: Provided

Core Component Warranty Period: 6 Months

Product Description

High rigid CNC Gantry lathe turning machine

Gantry Machining Center with high rigidity gantry structure, large travel table and precision drive system, become the industry benchmark for efficient processing of heavy and large parts. High strength cast iron bed and double column design to ensure cutting stability, can cope with steel, cast iron, aluminum alloy and other materials strong milling, drilling and tapping. Equipped with high-speed spindle (optional 12,000-20,000rpm) and automatic tool changing device (tool storage capacity of more than 30), to achieve complex surface and high-precision hole position of rapid processing. The five-axis optional version further expands the machining capability of shaped parts, combined with the intelligent compensation function of numerical control systems (such as Siemens and Fanuc), and the positioning accuracy can reach ±0.005mm.

1. Modular ram design, a variety of spindle options (Z axis can choose high-rigidity rectangular sliding guide), to meet different cutting needs.

2. All cast iron structural parts are optimized by three-dimensional design and finite element analysis, tempering and aging alternating process, completely eliminate the internal stress of castings, improve the overall motion rigidity and accuracy retention of the machine tool.

Product Categories : CNC Machining Center > Gantry Machining Center
