High Rigidity CNC

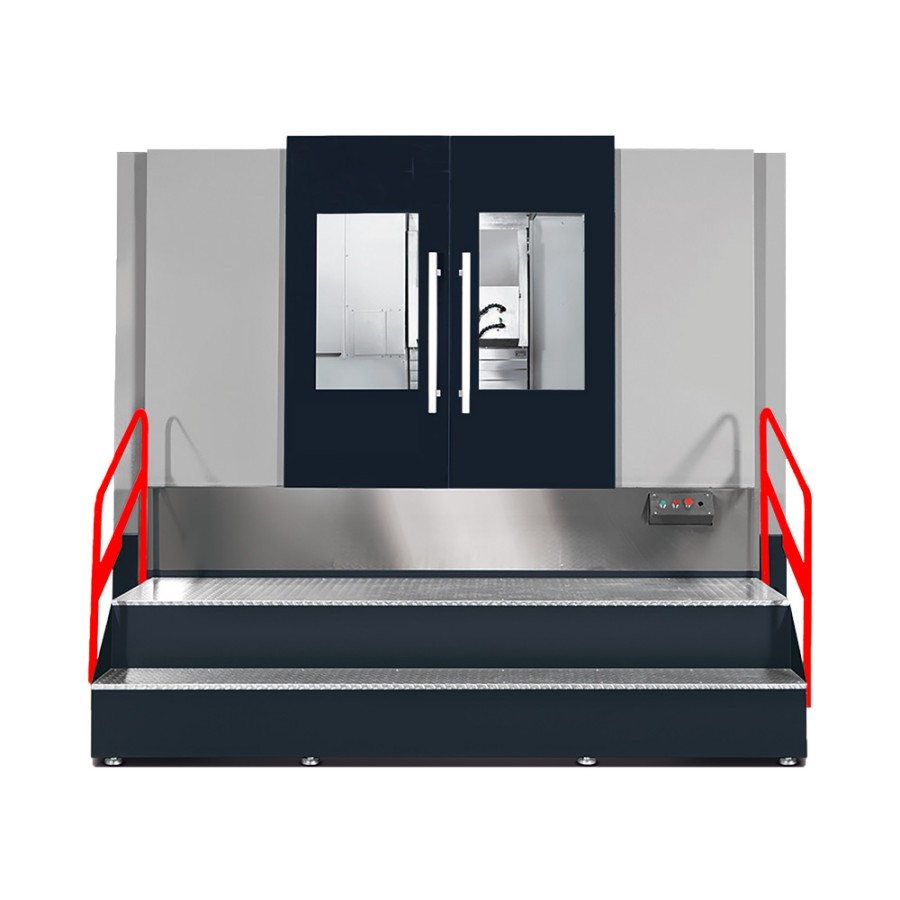

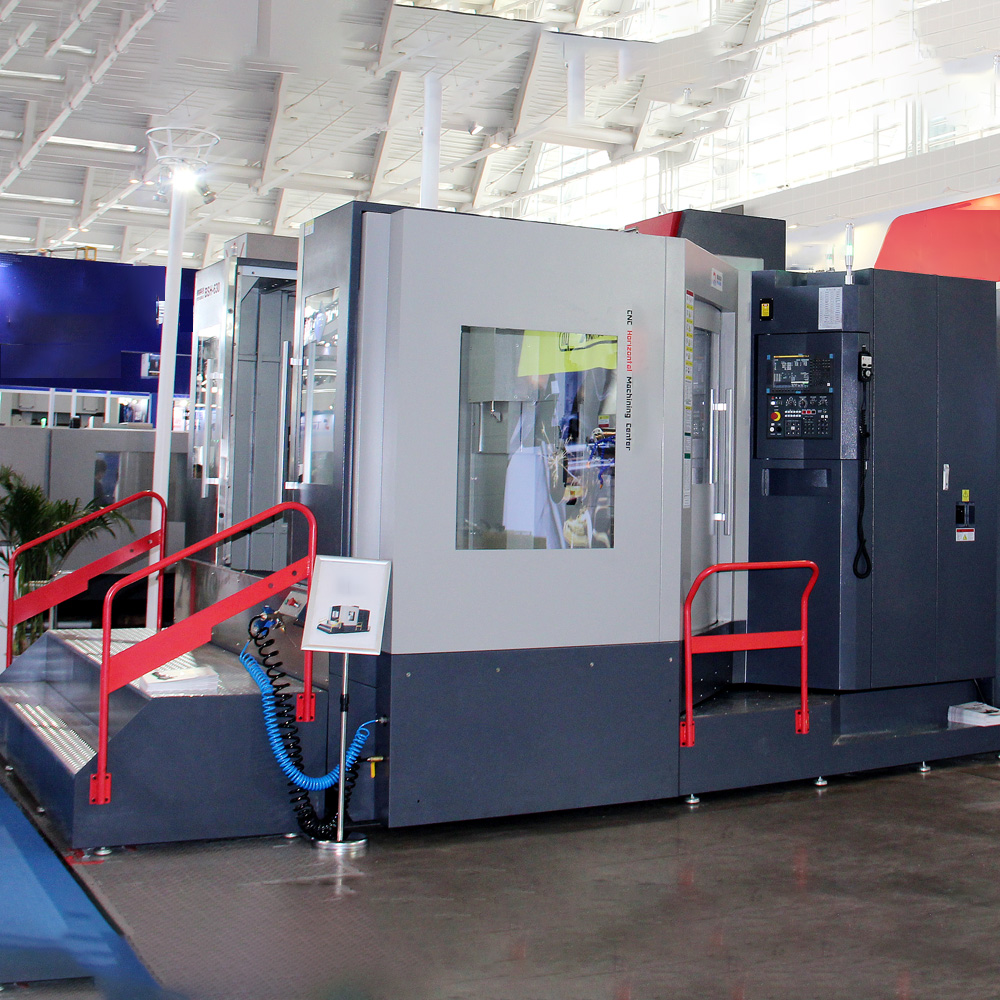

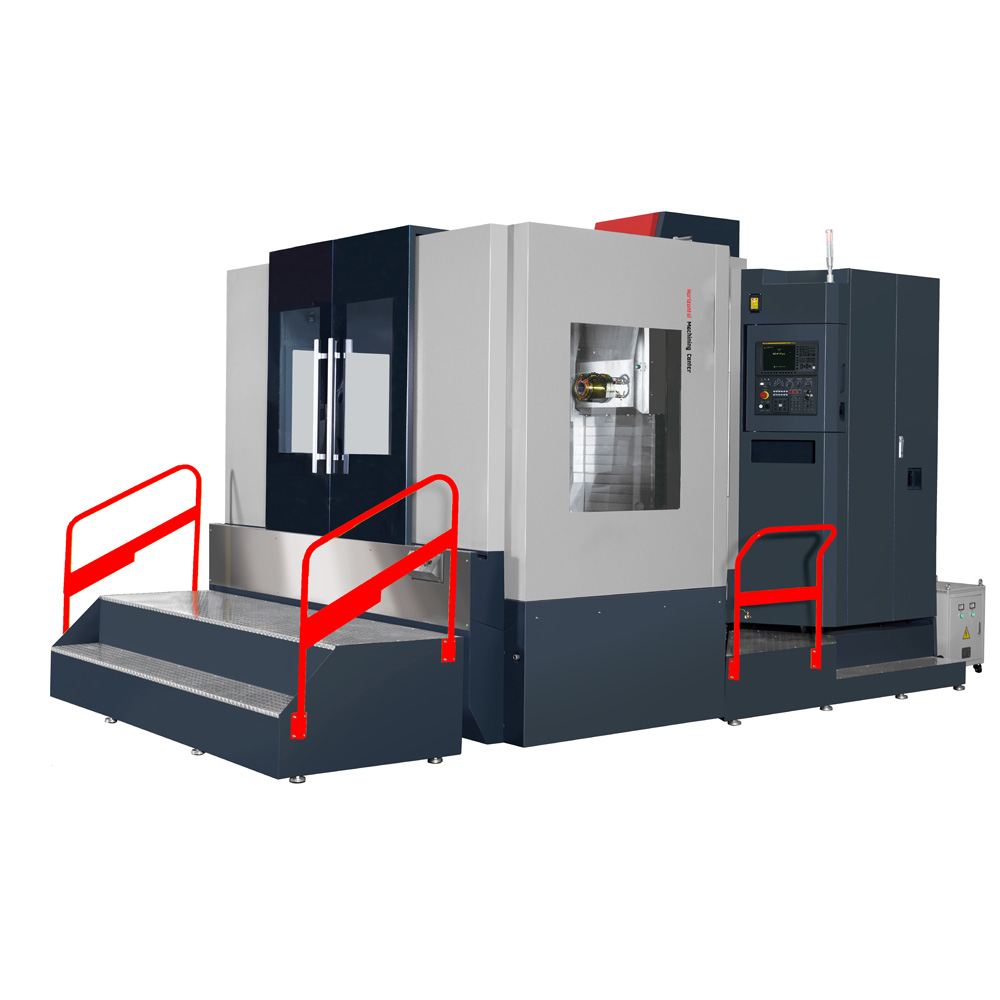

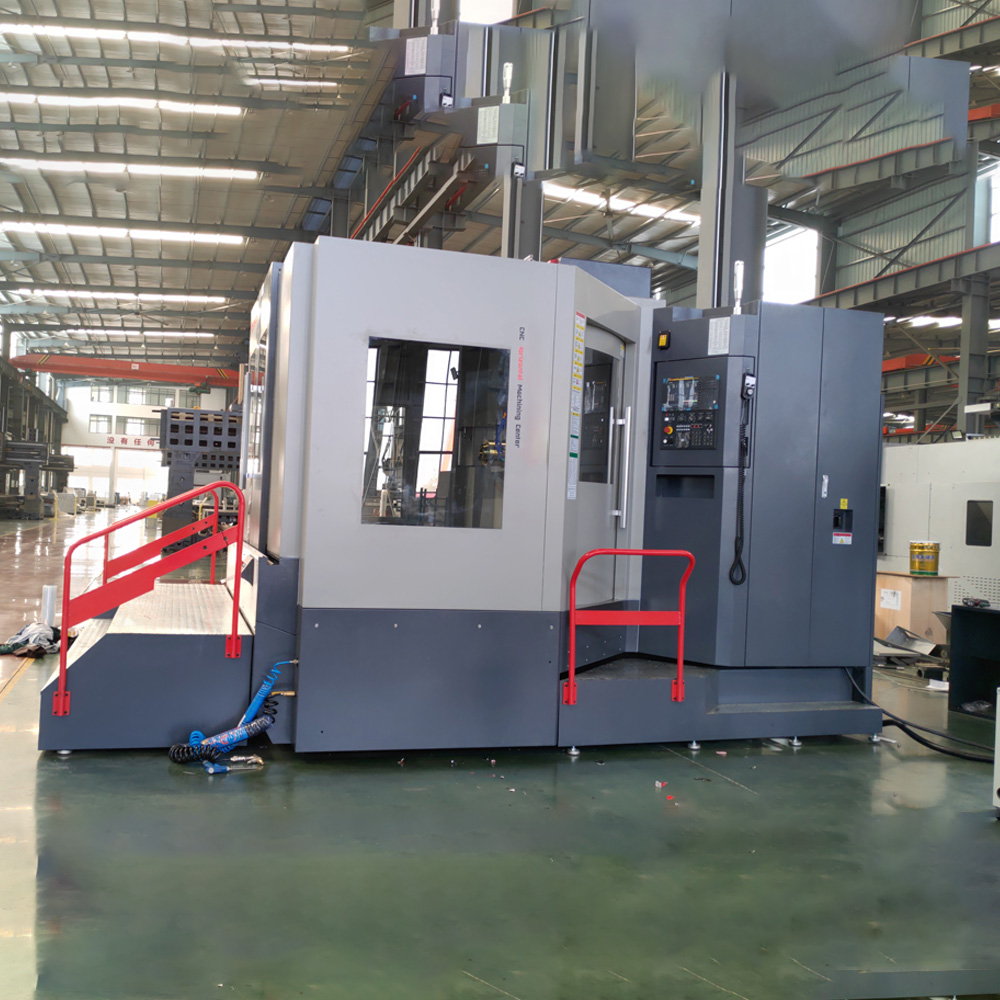

Horizontal Machining Center – Precision Engineering for Industrial Excellence This advanced
Horizontal machining center from GLAB is engineered for superior rigidity, precision, and operational safety, making it an ideal solution for high-demand manufacturing environments worldwide. Designed with a focus on structural integrity and dynamic performance, this CNC machine delivers consistent accuracy and reliability across complex
machining tasks—perfect for industries requiring tight tolerances, high-speed operations, and long-term durability. Key Features That Set It Apart: - Robust inverted T-box base structure ensures exceptional stability under rapid axial feed conditions. - Dual-layer column design with low center of gravity enhances vibration damping during
heavy-duty cutting cycles. - Optional CNC indexing (0.001°) or precision mouse-tooth disc indexing (1°) for accurate angular positioning in multi-axis setups. - Lightweight yet rigid symmetrical spindle housing minimizes thermal distortion and boosts dynamic responsiveness. - Triple-axis roller linear slides combine the robustness of hardened rails with the smoothness and wear resistance of linear motion systems—ideal for precision milling, drilling, and boring applications. - Hand-shoveling treatment on critical contact surfaces (base, column, table, screw mounts) guarantees optimal assembly accuracy, load balance, and structural resilience over time. Detailed Description: The GLAB horizontal machining center integrates cutting-edge engineering principles to address modern production challenges. Its monolithic base architecture, featuring an inverted T-box design, provides unmatched support rigidity even at high feed rates—an essential trait for maintaining dimensional consistency in aerospace, automotive, and mold-making sectors. The moving frame column structure, with its dual-wall configuration and low mass distribution, effectively suppresses chatter during aggressive tool paths, resulting in smoother finishes and extended tool life. The rotary table system offers two distinct indexing options: ultra-fine CNC-controlled rotation (0.001° resolution) for intricate part orientation or mechanical mouse-tooth indexing (1° precision) for cost-effective, reliable positioning in repetitive batch jobs. The spindle box employs a balanced, symmetrical layout that reduces internal stress and heat-induced deformation—critical for maintaining concentricity and surface finish quality during prolonged operations. Additionally, the use of roller linear guides on all three axes merges the stiffness of traditional hard rails with the efficiency of linear bearings, offering enhanced control, reduced maintenance, and faster cycle times compared to conventional sliding systems. Ideal Applications: This machine excels in medium to large-scale production environments where precision, repeatability, and uptime are paramount. Common applications include: - Automotive engine block and transmission housing machining - Aerospace components such as turbine casings and structural brackets - Die and mold manufacturing for injection molding and die casting - Heavy-duty industrial parts requiring
five-axis capability or multi-setup operations User Testimonials: "Since integrating this horizontal machining center into our facility, we've seen a 30% reduction in cycle time without compromising accuracy. The rigidity is impressive—especially when running deep cavity cuts." — Manufacturing Engineer, Germany "The hand-shoveled joints make a noticeable difference in long-term alignment stability. Even after months of continuous operation, there’s no sign of wear-related drift." — Production Manager, Canada Frequently Asked Questions: What makes this machining center more rigid than others? It combines a reinforced inverted T-box base, a dual-layer column design, and roller linear guides on all axes—each element optimized for minimal deflection under load. This holistic approach ensures maximum stiffness during both static and dynamic machining phases. How does the indexing system contribute to productivity? With optional CNC indexing down to 0.001°, users can achieve highly precise angular positioning for complex contours or multiple setups without manual intervention. For simpler tasks, the 1° mouse-tooth disc option provides fast, repeatable indexing at lower cost. Is the machine suitable for high-volume production? Yes—it’s built for continuous operation. The thermal management features, durable materials, and robust mechanical design ensure consistent performance across shifts and years of service. In summary, this high-rigidity CNC horizontal machining center represents a significant advancement in automated metalworking technology. Whether you're producing precision aerospace components or demanding automotive parts, its blend of structural strength, intelligent design, and operational flexibility positions it as a future-proof investment for global manufacturers seeking excellence in machining performance.
