Leave a messageBasic Info
Model NO.: CK61145-1000
Application: Metal
Process Usage: Metal-Cutting CNC Machine Tools, Metal-Forming CNC Machine Tools
Movement Method: Point to Point Control
Control Method: Closed-Loop Control
Numerical Control: CNC/MNC
Processing Precision: 0.01~0.02(mm)
Performance Classification: Economical CNC Machine Tools
Condition: New

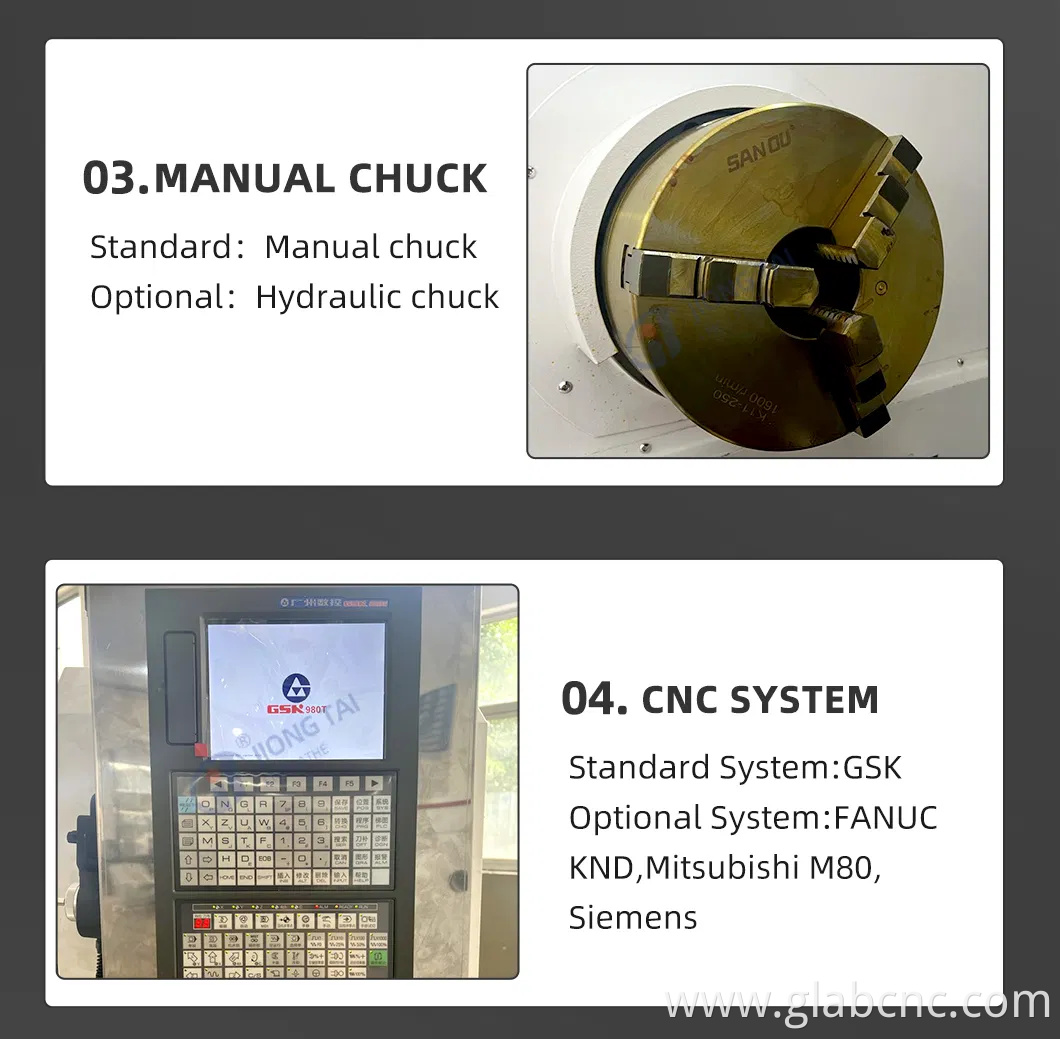

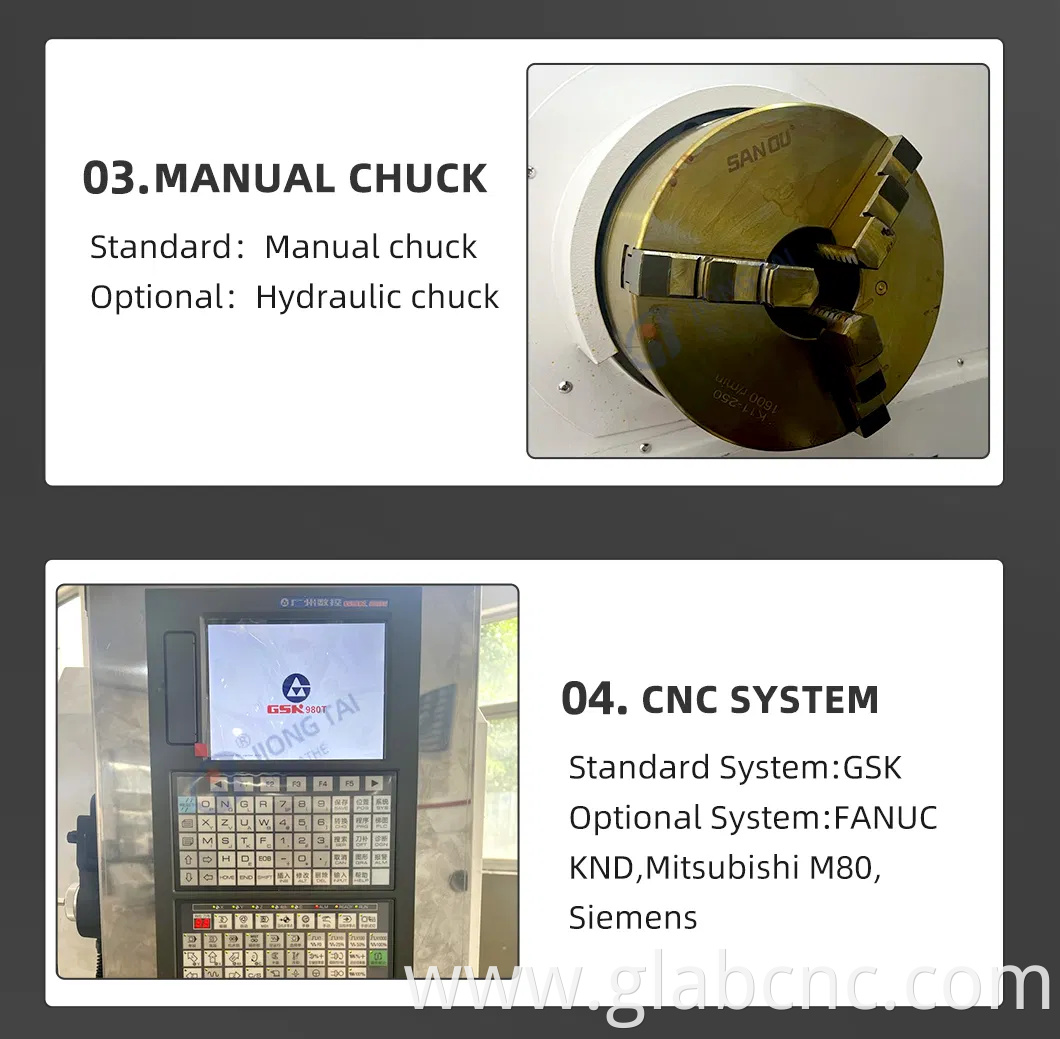

CNC System: GSK

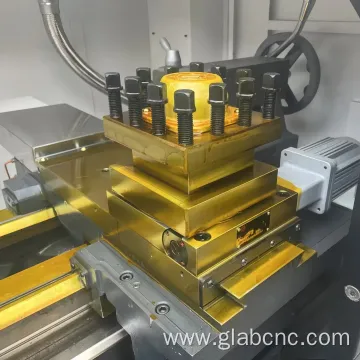

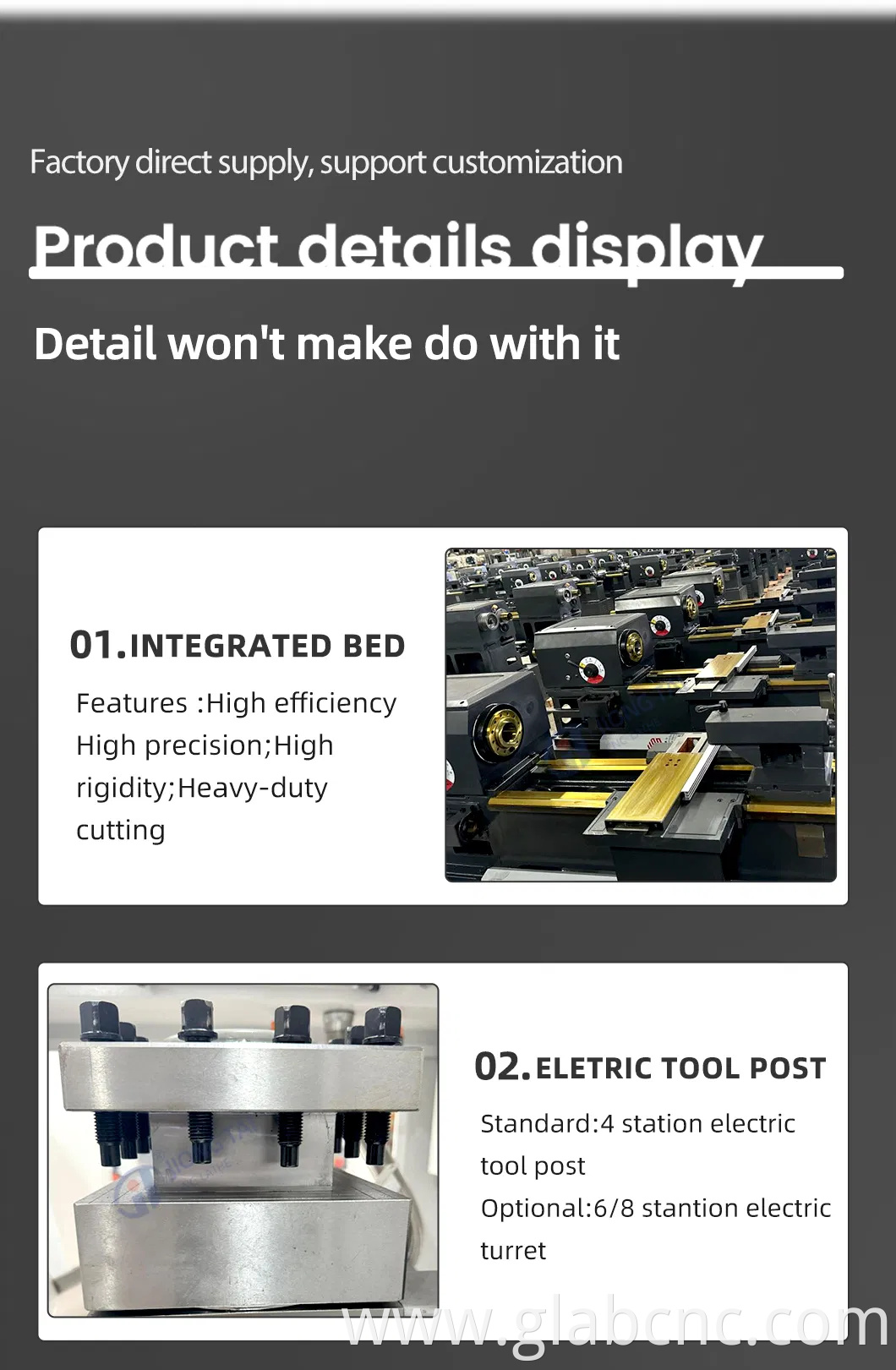

Four Station Tool Holder: 300 Knife Holder
Precision: High Precision
Inverter: 22W
Transport Package: Seaworthy Packing
Specification: 2350*2350*3500mm
Trademark: JT
Origin: China
HS Code: 8458110000
Production Capacity: 1500 Sets/Year
Customization: Available
After-sales Service: 24 Hour Online Technical Support
Warranty: 1 Year
Additional Info
Supply Ability: 1500 Sets/Year
Product Description

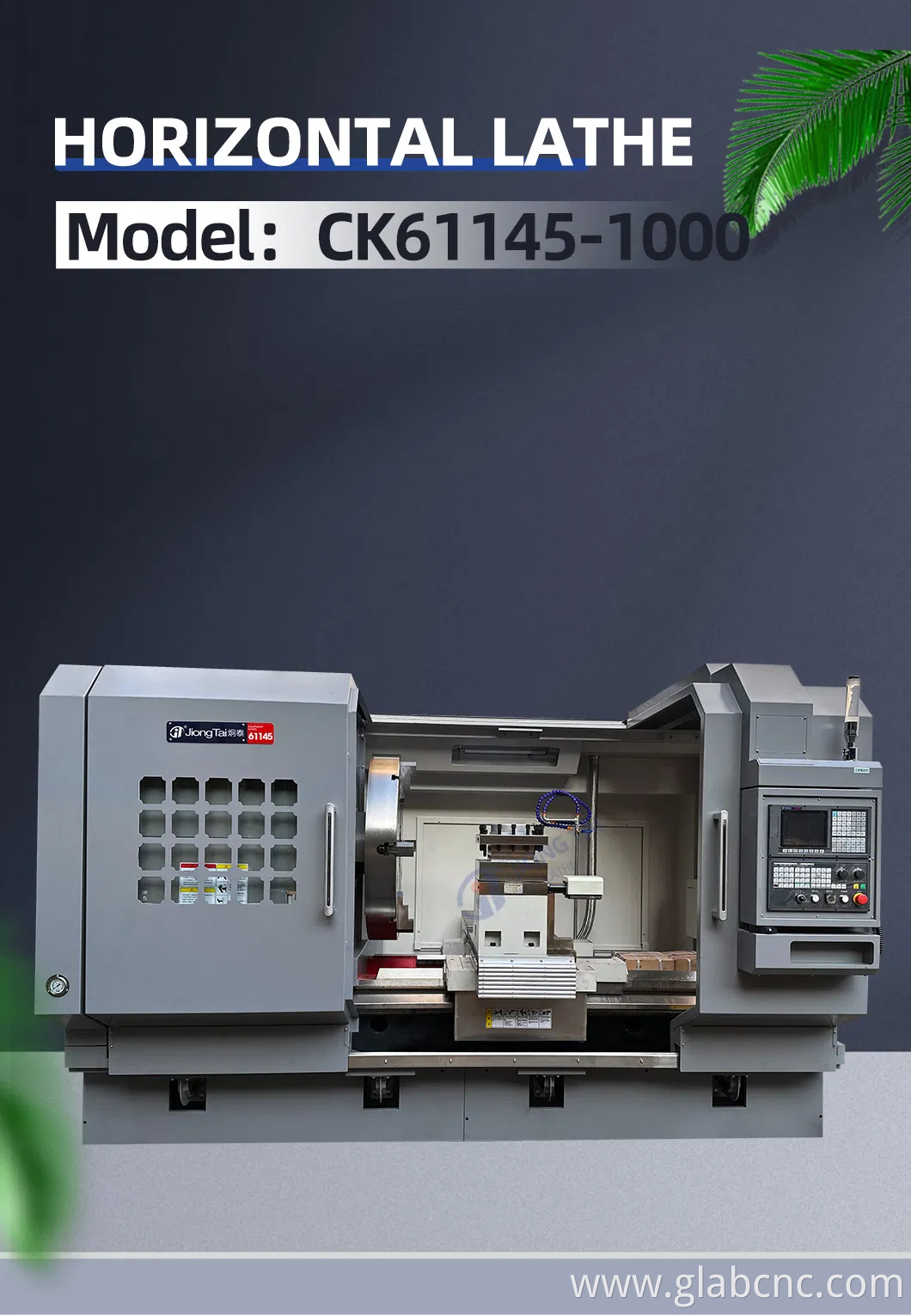

| ITEM | UNIT | CK61145-1000 |
|---|---|---|
| Swing over bed | mm | 1450 |
| Servo motor | nm | 10,15 |
| Maximum rotation diameter on the tool holder | mm | 1080 |
| X middle drag board width | mm | 420 |
| Width of the upper guide rail of the bed | mm | 720 |
| Spindle end | ISO(GB)A2-11 | |

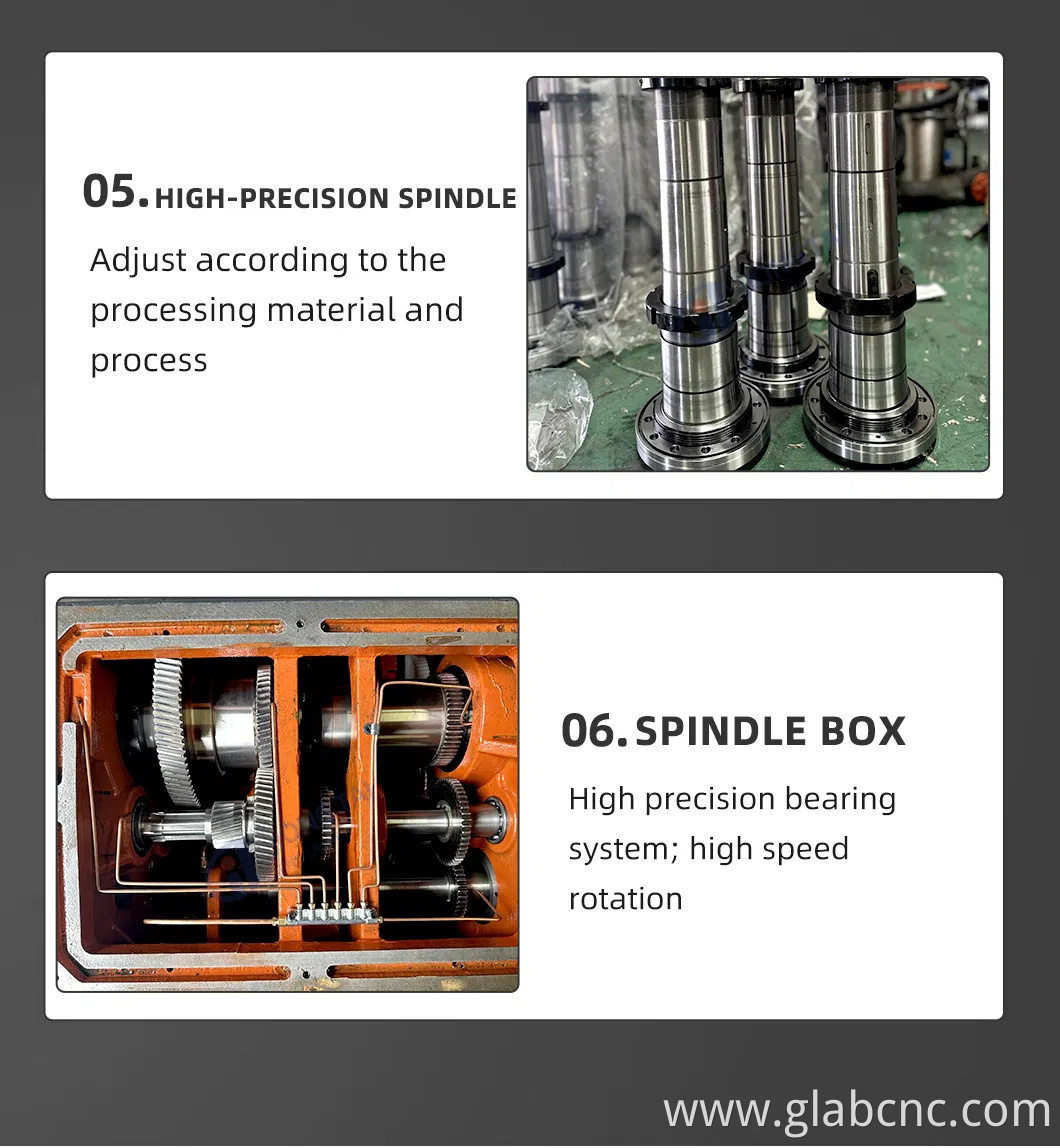

| Main spindle through-hole diameter | mm | 130 |
| Main spindle through-hole diameter | rpm | 30-84/53-150/125-350/300-835 |

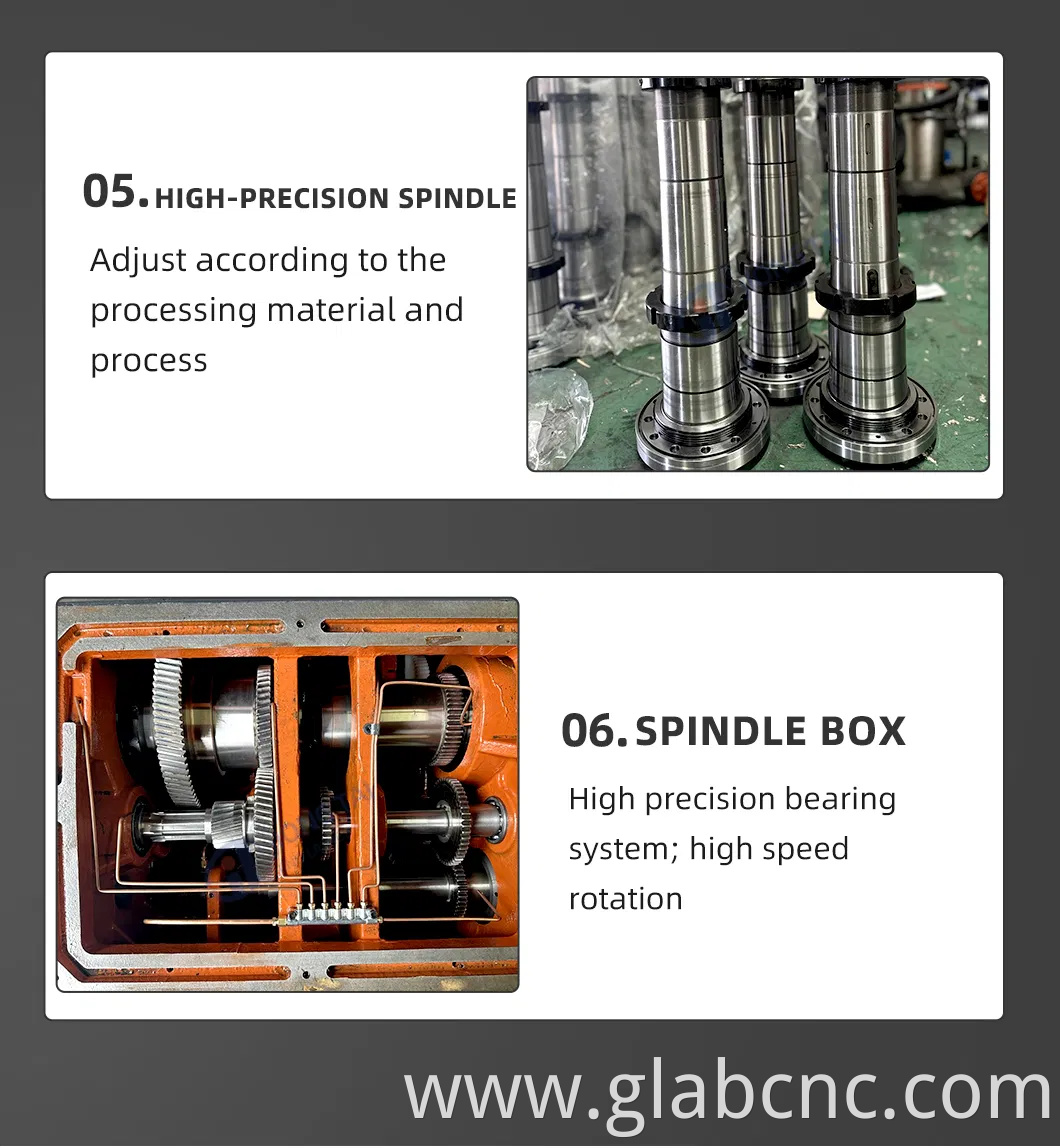

| spindle | Manual Shift to Fourth Gear | |
| The minimum movement unit of the drag plate in the Z direction | m/min | 0.001 |
| The minimum movement unit in the X-direction of the drag board | m/min | 0.0005 |
| Z-direction travel of the drag plate | mm | 1000 |
| Trailer X-direction travel | mm | 650 |
| X-phase positioning accuracy | mm | 0.015 |
| Z-phase positioning accuracy | mm | 0.02 |
| X-phase repeated positioning accuracy | mm | 0.01 |
| Repetive positioning accuracy | mm | 0.01 |
| Maximum processing length | mm | 1000 |
| Rapid movement speed of drag board in X/Z direction | m/min | 6000 |
| Tail socket diameter | mm | 130 |
| Tailstock taper hole | MT 6# | |
| Maximum stroke of tailstock sleeve | mm | 250 |
| Main motor power | kw | 22 |
| Electric tool holder repetitive positioning accuracy | mm | 0.002 |
| Whole machine weight | kg | 6000 |

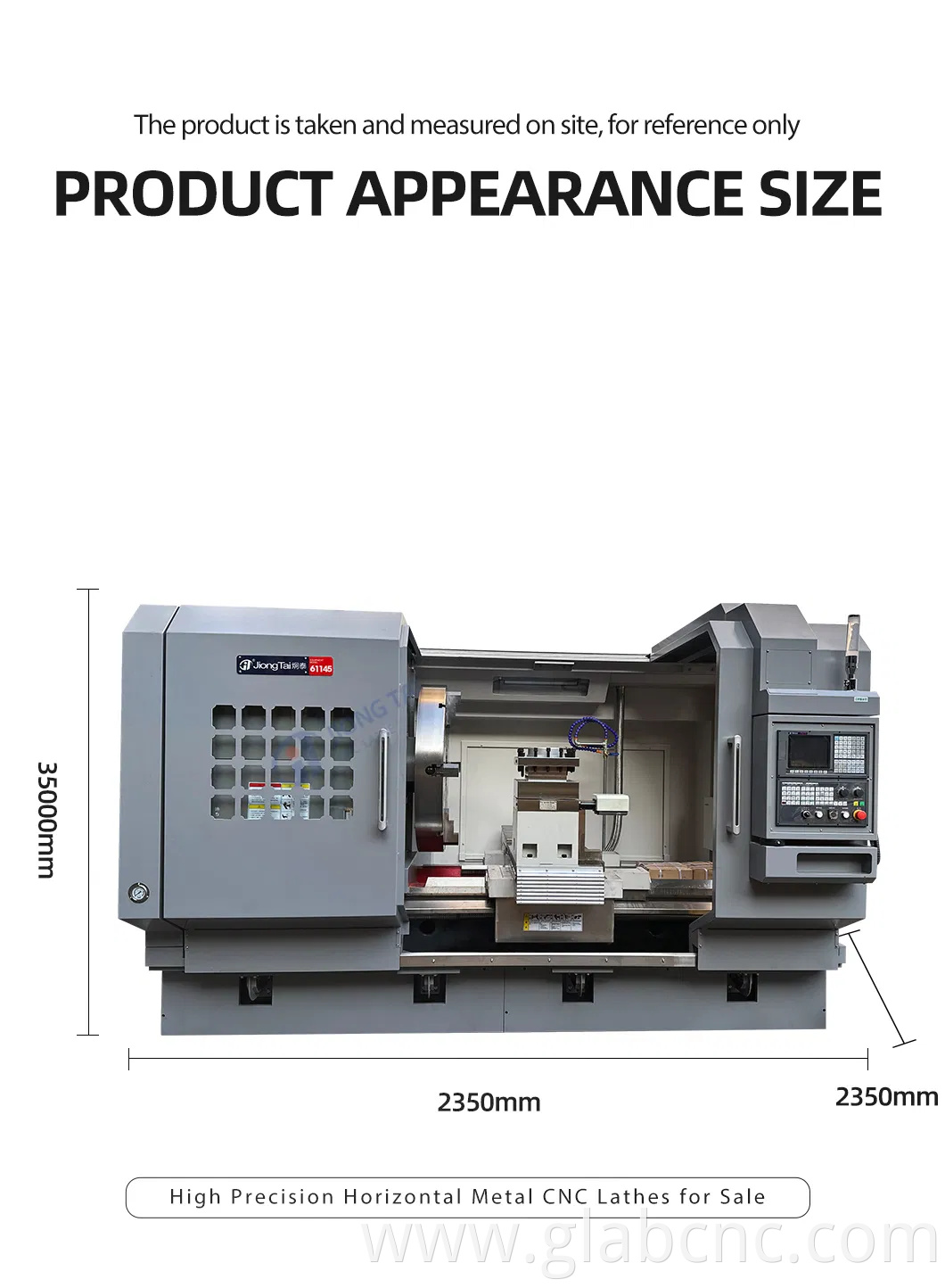

| External dimensions(mm) | mm | 2350*2350 * 3500 |
