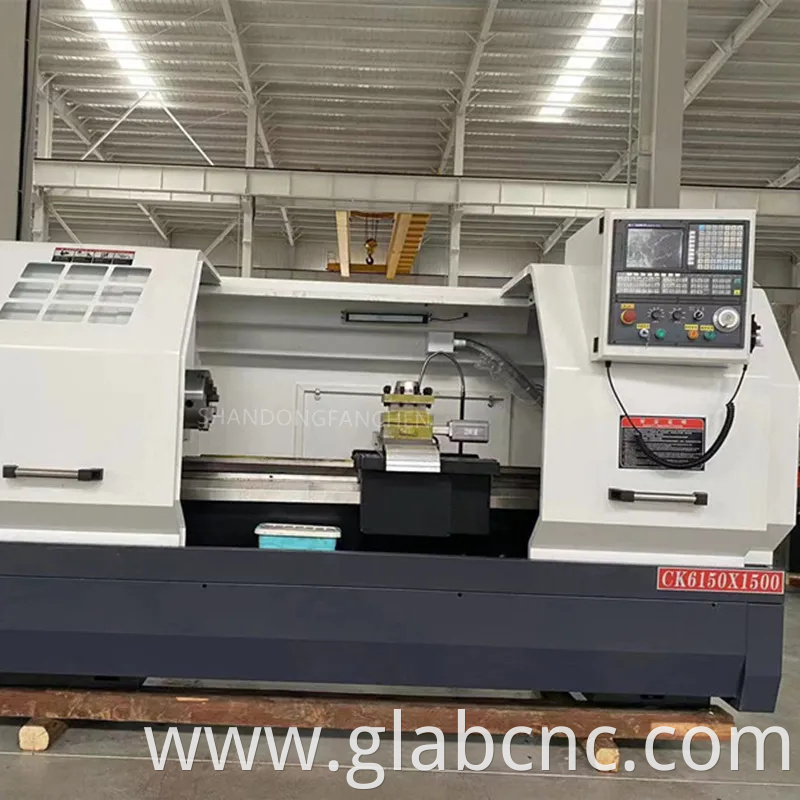

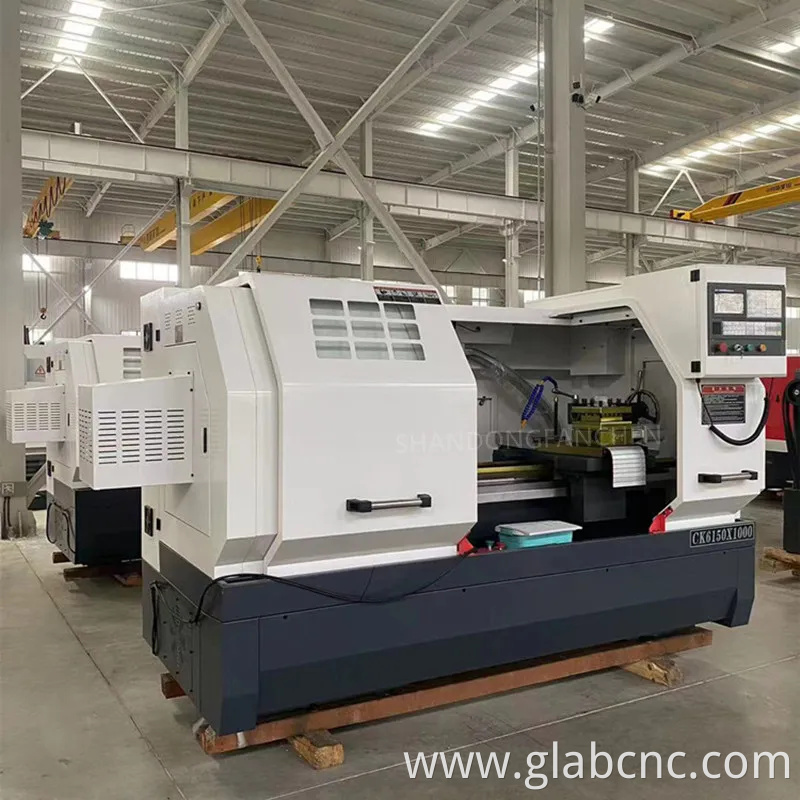

Basic Info

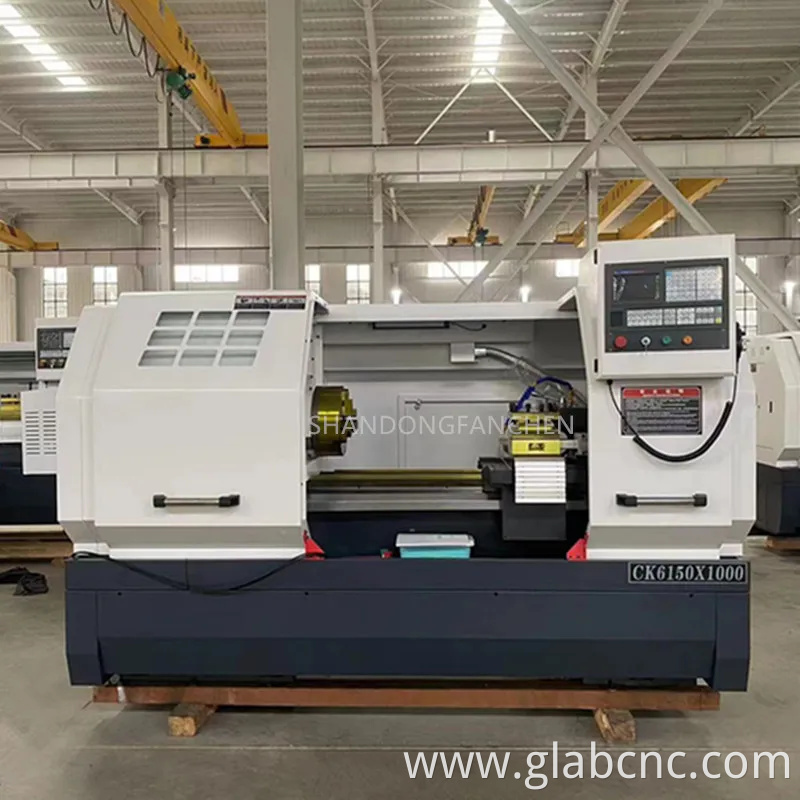

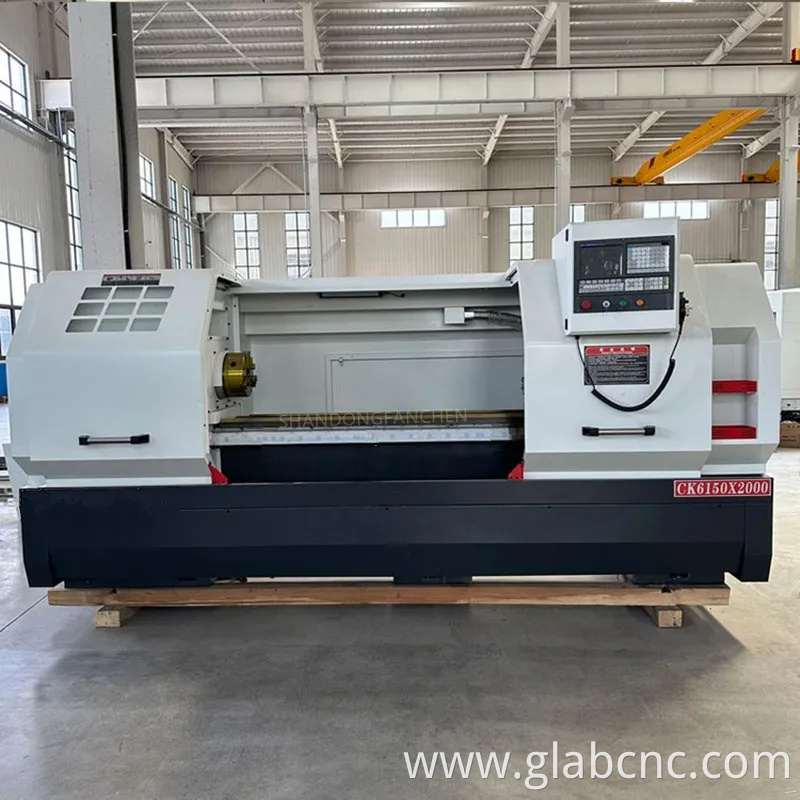

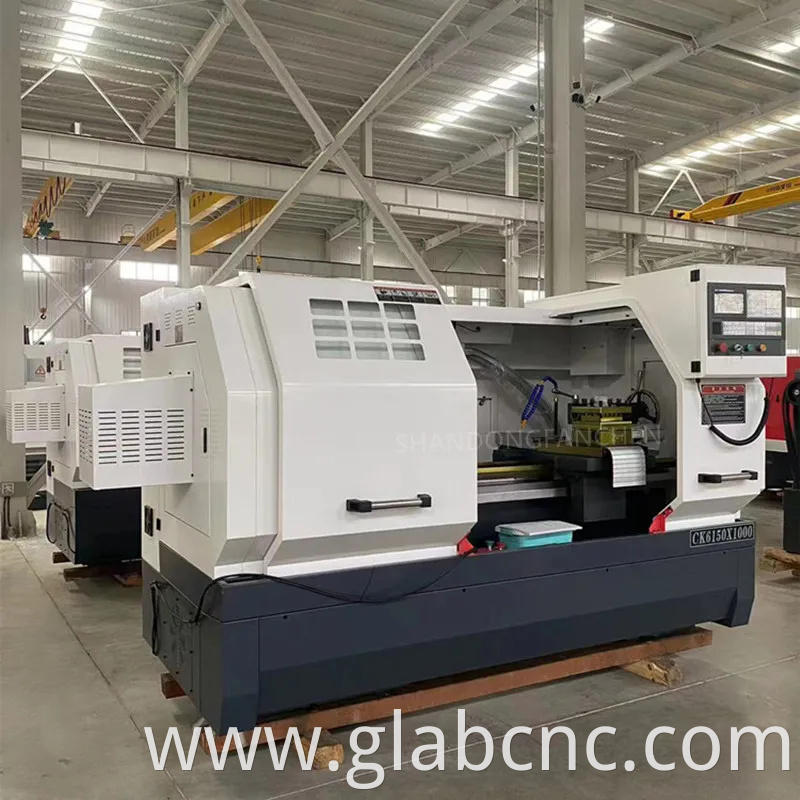

Model NO.: CK6150
Type: Horizontal Lathe
Processing Accessory: Chuck CNC Lathe
Guide Rail: Inclined Guide Rail
Tool Holder: Single-tool Holder CNC Lathe
Power Source: Electric
Controlling Mode: Cnc
Automatic Grade: Automatic
Setting Mode: Floor-Type
Precision: High Precision
Certification: GS, CE, ISO 9001
Condition: New
Turning Diameter Of Bed Surface: 500
Maximum Working Length: 750/1000/1500/2000/3000
Tool Rest Form: Electric Four-Station
Machining Accuracy: High
Inner Diameter Of Spindle Through Hole: Φ82
Width Of Guide: 400
Spindle Drive Form: Three Speed Endless Shift
Spindle Speed: 20-2600
Tailstock Sleeve Stroke: 150
Tool Dimension: 25*25
Transport Package: Wooden
Specification: 2600× 1500× 1650
Trademark: FANCHEN
Origin: China
Production Capacity: 10
Customization: Available
After-sales Service: Online
Warranty: 2 years
Shipping Cost: Contact the supplier about freight and estimated delivery time.
Additional Info
Supply Ability: 10

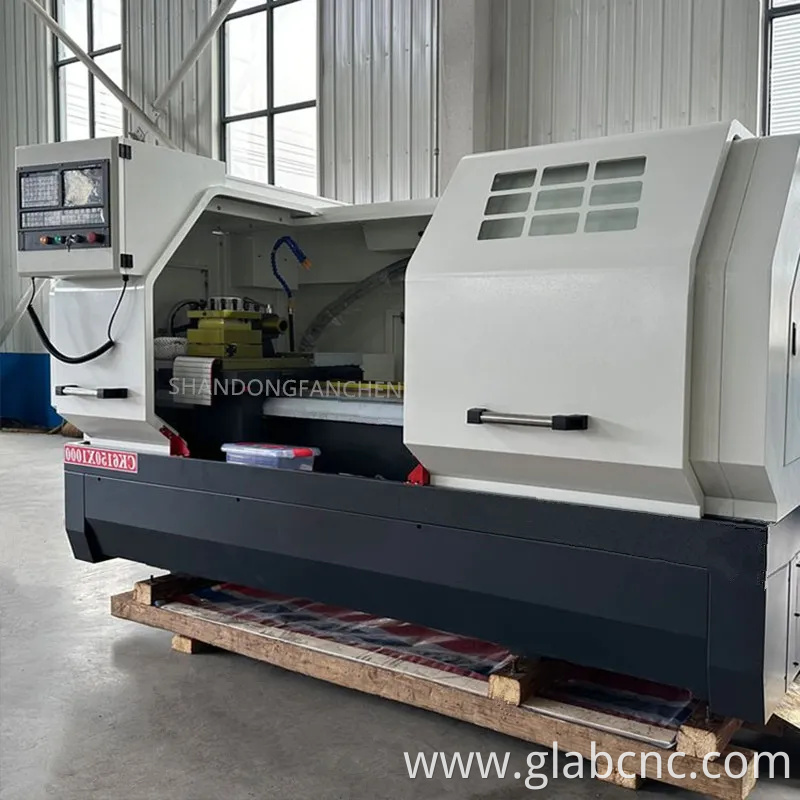

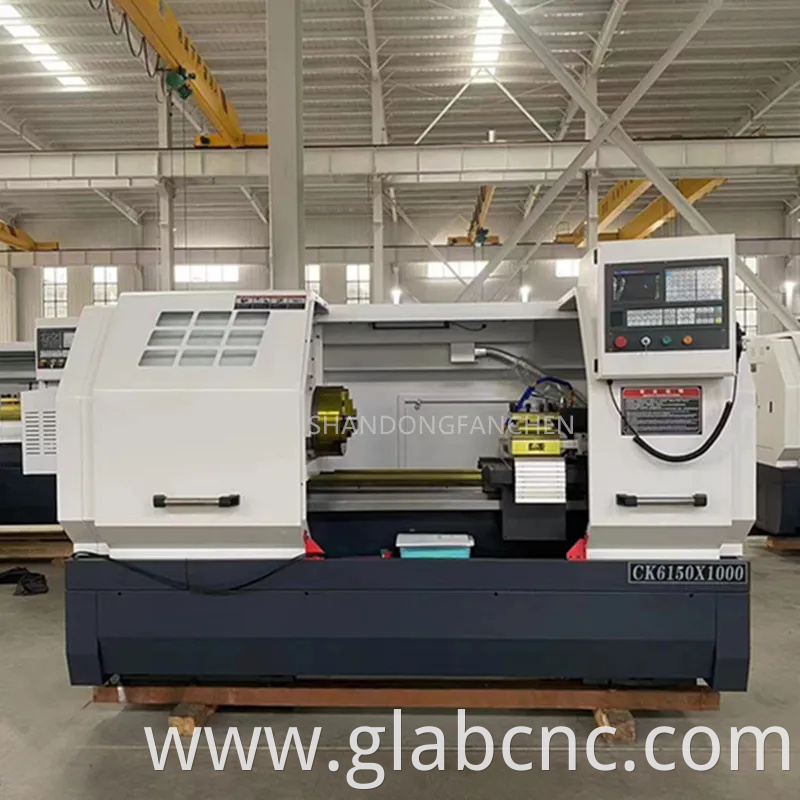

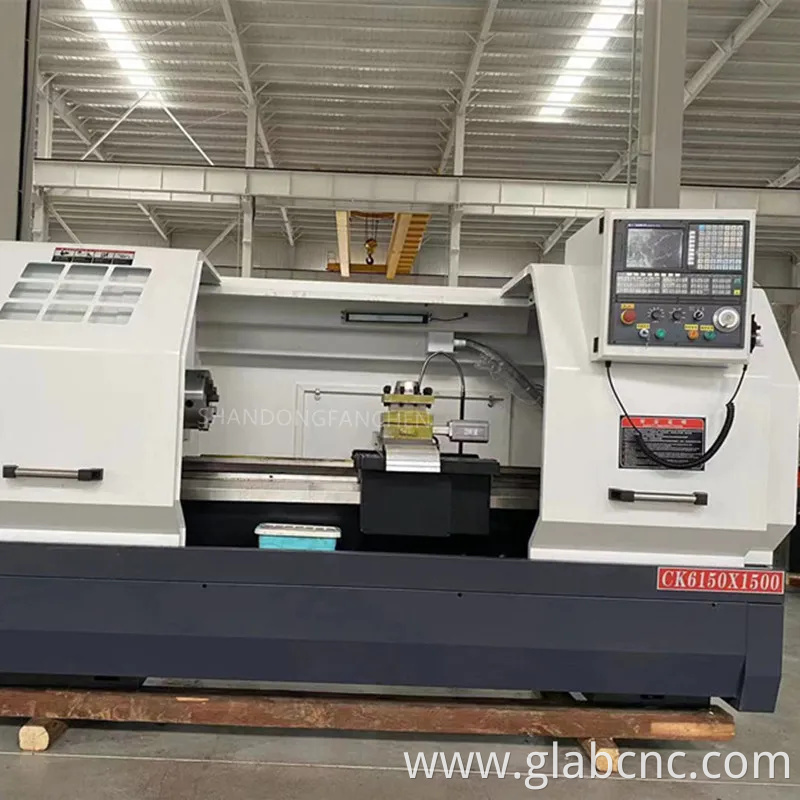

Product Description
| Model NO. | CK6150 |
| Type | Horizontal Lathe |
| Processing Accessory | Chuck CNC Lathe |
| Guide Rail | Inclined Guide Rail |
| Tool Holder | Single-tool Holder CNC Lathe |
| Power Source | Electric |
| Controlling Mode | CNC |
| Automatic Grade | Automatic |
| Setting Mode | Floor-type |
| Precision | High Precision |
| Certification | GS, CE, ISO 9001 |
| Condition | New |
| Turning Diameter of Bed Surface | 500 |
| Maximum Working Length | 750/1000/1500/2000/3000 |
| Tool Rest Form | Electric Four-Station |
| machining Accuracy | High |
| Inner Diameter of Spindle Through Hole | Φ82 |
| Width of Guide | 400 |
| Spindle Drive Form | Three Speed Endless Shift |
| Spindle Speed | 20-2600 |
| Tailstock Sleeve Stroke | 150 |
| Tool Dimension | 25*25 |
| Transport Package | Wooden |
| Specification | 2600× 1500× 1650 |
| Trademark | FANCHEN |
| Origin | China |
| Production Capacity | 10 |
| Package Size | 3600.00cm * 3800.00cm * 3100.00cm |
| Package Gross Weight | 2200.000kg |
| Items | Unit | CK6150 |
|---|---|---|
| Swivel diameter on the bed | mm | Φ500 |
| Maximum swing diameter on the slide | mm | Φ280 |
| Processing length | mm | 1000//1500/2000/3000/4000 |
| Spindle drive form | Three speed endless shift | |
| Spindle speed | rpm | 21-7048-1600100-350 |
| Numerical control system | Siemens840 | |
| Spindle end form and code | A2-8/C8 | |
| Spindle through-hole inner diameter | mm | Φ82 |
| Spindle motor power | KW | 7.5 |
| Chuck size | mm | 250 |
| Lead screw specification | mm | Φ40*8 |
| X/Z feed motor torque | NM | 6/10 |
| X/Z repeated positioning accuracy | mm | 0.01/0.015 |
| Workpiece machining accuracy | IT6-IT7 | |
| Workpiece surface roughness | Ra | 1.6 |
| Tail seat sleeve diameter | mm | Φ75 |
| Tailstock sleeve stroke | mm | 150 |
| Tailstock sleeve taper hole | MT5 | |
| Tool rest form | Electric four-station | |
| Tool dimension | mm | 25*25 |
| Width of guide | mm | 400 |
1. How can I choose the most suitable machines?
A: Please tell me your specifications, we can choose the best model for you, or you can choose the exact model. You can also send us the product drawing, we will choose the most suitable machines for you.
2. What's your main products of your company?
A: We specialized in all kinds of machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine and so on.
3. Where is our factory located? How can I visit there?
A: Our factory is located in Tengzhou City, Shandong Province, 277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A: FOB, CFR and CIF all acceptable.
5. What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment; Irrevocable LC at sight.
6. What's the MOQ?
A: 1 set. (Only some low cost machines will be more than 1 set)
