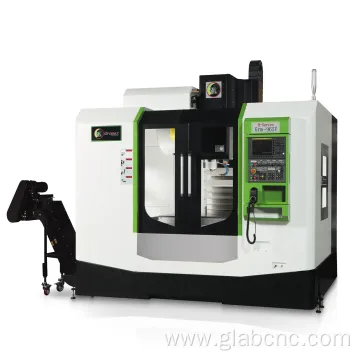

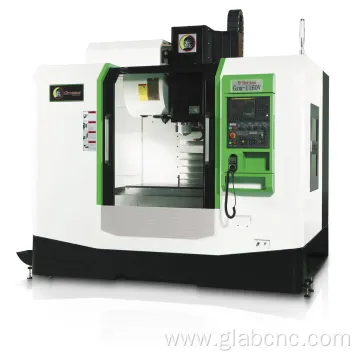

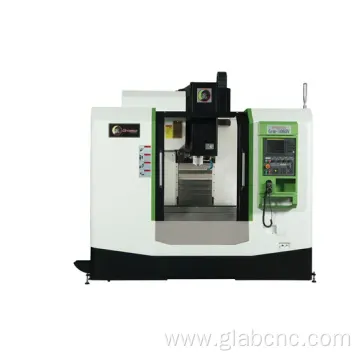

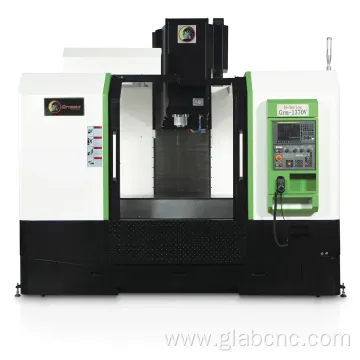

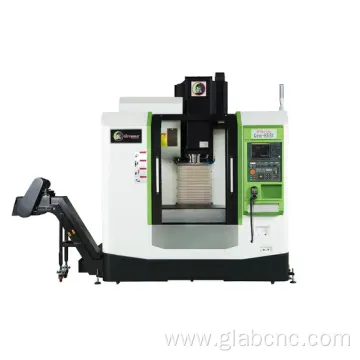

Basic Info
Model No.: GRM-V
Application: Metal
Process Usage: Metal-Cutting CNC Machine Tools
Movement Method: Point to Point Control
Control Method: Closed-Loop Control
Numerical Control: CNC/MNC
Processing Precision: 0.01~0.02(mm)
Performance Classification: Mid-Range CNC Machine Tools
Certification: CE, ISO 9001
Condition: New
Transport Package: Seaworthy Packing
Specification: 5600*3600*3150mm
Trademark: Gromax MACHINING
Origin: Changshu, Jiangsu, China
HS CODE: 845710
Production Capacity: 1500 Sets/Year
Customization: Available
After-sales Service: Remote After Sales Service
Warranty: 12months
Additional Info
Supply Ability: 1500 Sets/Year
Product Description
| Mechanical Specification Sheet | ||||||||||
| Specification | Unit | Grm-640V | Grm-650V | Grm-850V | Grm-960V | Grm-1060V | Grm-1160V | Grm-1370V | Standard Configuration | |
| Worktable | Mitsubishi M80B System | |||||||||
| Worktable Size | mm | 700x400 | 760X450 | 1000x550 | 1060X580 | 1100X580 | 1240X610 | 1400X700 | Tool Magazine | |
| Worktable Load Capacity | kg | 300 | 500 | 600 | 800 | 900 | 1000 | 1100 | Fully Enclosed Cover | |
| T-Slot Width (Width * Pitch * Nr. of Slots) | mm | 14x100x3 | 18x100x4 | 18x100x5 | 18x110x5 | 18x125x5 | 18x125x5 | Work Light | ||
| Axis Travel | Tri-color Operation Indicator Light | |||||||||
| X-axis Travel | mm | 600 | 650 | 800 | 900 | 1000 | 1100 | 1300 | Coolant System | |
| Y-axis Travel | mm | 400 | 400 | 520 | 600 | 640 | 700 | Spindle Air Blower | ||
| Z-axis Travel | mm | 450 | 450 | 560 | 680 | 680 | 650 | 650 | Automatic Lubrication System | |
| Distance from Spindle Face to Worktable | mm | 80-530 | 150-600 | 120-680 | 110-790 | 110-790 | 120-770 | 120-770 | Electrical Cabinet Heat Exchanger | |
| Distance from Spindle Center to Z-axis Guide Surface | mm | 420 | 500 | 570 | 610 | 650 | 720 | Spindle Air Curtain Dust Protection Device | ||
| Spindle | Cleaning Air Gun | |||||||||
| Speed Range * | rpm | 20000 | 12000 | 12000 | 12000 | 10000 | 10000 | 10000 | Cleaning Water Gun | |
| Spindle Power (S1/S6)* | kw | 3.7/5.5 | 7.5/11 | 7.5/11 | 7.5/11 | 11/15 | 11/15 | 11/15 | Built-in Air Tank | |
| Spindle Torque(S1/S6)* | Nm | 14.1/21 | 35.8/70 | 35.8/70 | 35.8/70 | 52.5/95.5 | 52.5/95.5 | 52.5/95.5 | Spindle Oil Cooler | |
| Spindle Taper * | BT30 | BT40 | BT40 | BT40 | BT40 | BT40 | BT40 | Leveling Screws and Pads | ||
| Spindle Type | Direct Drive | 2G Memory Card | ||||||||
| Feed | Operation and Maintenance Manual | |||||||||
| X-axis Rapid Traverse | m/min | 15 | 48 | 48 | 30 | 30 | 30 | 30 | Tool Box | |
| Y-axis Rapid Traverse | m/min | 15 | 48 | 48 | 30 | 30 | 30 | 30 | ||
| Z-axis Rapid Traverse | m/min | 15 | 48 | 48 | 30 | 30 | 30 | 30 | ||
| Cutting Feed Speed | mm/min | 10000 | 15000 | 15000 | 15000 | 15000 | 15000 | 15000 | ||
| Automatic Tool Change System | Optional Configuration | |||||||||
| Tool Magazine Capacity | set | 20 | 24 | 24 | 24 | 24 | 24 | 24 | FANUC/Siemens System | |
| Maximum Tool Outer Diameter (Full Load of Tools) | mm | 65 | 80 | 80 | 80 | 80 | 80 | 80 | Electrical Cabinet Air Conditioner | |
| Maximum Adjacent Empty Slot Tool Diameter | mm | 120 | 150 | 150 | 150 | 150 | 150 | 150 | Spindle Central Water Outlet and Cooling Device | |
| Maximum Tool Length | mm | 200 | 300 | 300 | 300 | 300 | 300 | 300 | Built-in Electric Spindle | |
| Maximum Tool Weight | kg | 5 | 8 | 8 | 8 | 8 | 8 | 8 | 16000/20000/24000 rpm | |
| Tool Change Time (Tool to Tool) | sec | 2 | 2.4 | 2.4 | 2.4 | 2.4 | 2.4 | 2.4 | Direct Drive Spindle 15000 rpm | |
| Accuracy (VDI3441, JISB6338) | Complete Set Fourth Axis Rotary Table | |||||||||
| Positioning Accuracy | mm | P0.01(±0.004/300) | P0.012(±0.004/300) | Hinged Belt Chip Conveyor | ||||||
| Repeatable Accuracy | mm | Ps0.008(±0.003) | Ps0.01(±0.003) | Oil Mist Collector | ||||||
| Others | Oil-Water Separator | |||||||||
| Power Requirement | Kva | 15 | 15 | 20 | 25 | 25 | 25 | 25 | Rear Flushing Device | |
| Minimum Air Pressure Requirement | kg/cm2 | 6 | 5.5 | 6 | 6 | 6 | 6 | 6 | Automatic Tool Length Measurement | |
| Cutting Fluid Capacity | liter | 250 | 250 | 300 | 300 | 300 | 300 | 350 | Automatic Door Device | |
| Machine Footprint (Length x Width) | mm(Ca.) | 1900x2200 | 2000x2200 | 2400x2350 | 2700x2400 | 2700x2400 | 2900x2600 | 3200x2700 | ||
| Machine Height | mm(Ca.) | 2600 | 2600 | 2750 | 2750 | 2750 | 2830 | 2850 | ||
| Machine Weight | kg(Ca.) | 3000 | 4600 | 5600 | 6300 | 6500 | 7500 | 8200 | ||
| * indicates optional items; please call for specific configuration | ||||||||||
| Note 1: The machine footprint in the table includes the dimensions of the standard configuration chip conveyor. | ||||||||||
| Note 2: Our company reserves the right to change the catalog content and text at any time due to technical requirements. | ||||||||||
