Basic Info
Model No.: VMC1160
Application: Metal
Process Usage: Metal-Cutting CNC Machine Tools
Movement Method: Linear Control
Control Method: Closed-Loop Control
Numerical Control: CNC/MNC
Processing Precision: 0.02~0.03(mm)
Performance Classification: High-End CNC Machine Tools
Certification: CE, ISO 9001
Condition: New
Spindle Number: 3 Axis
Working Table Size: 1200X600
Table Load Capacity: 900kg
Metarial: Hardened Steel
Color: Customized
Transport Package: Wood Box
Specification: 3200x2500x2600
Trademark: RL
Origin: Shandong
HS CODE: 8457101000
Production Capacity: 10 Sets/ Month
Customization: Available
After-sales Service: Online
Warranty: Online
Shipping Cost: Contact the supplier about freight and estimated delivery time.
Additional Info
Supply Ability: 10 Sets/ Month
Product Description
Product Description

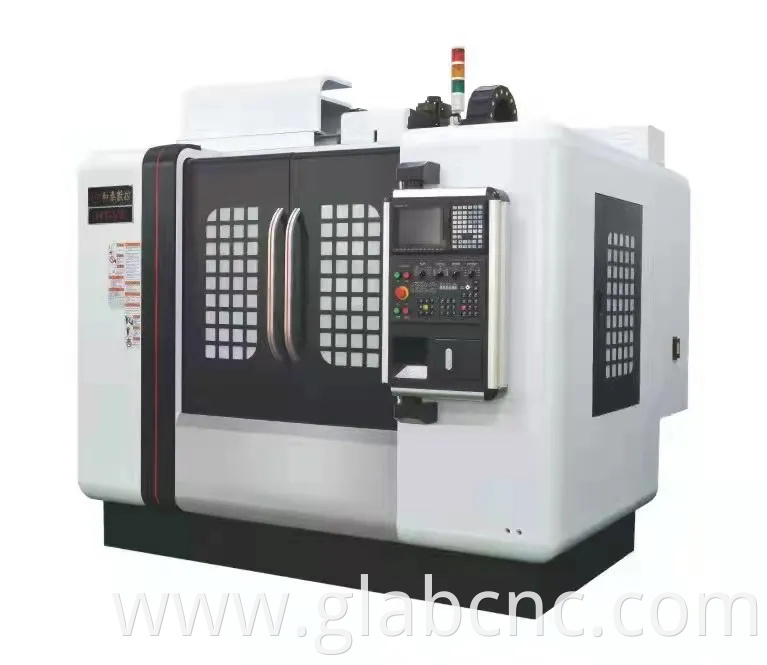

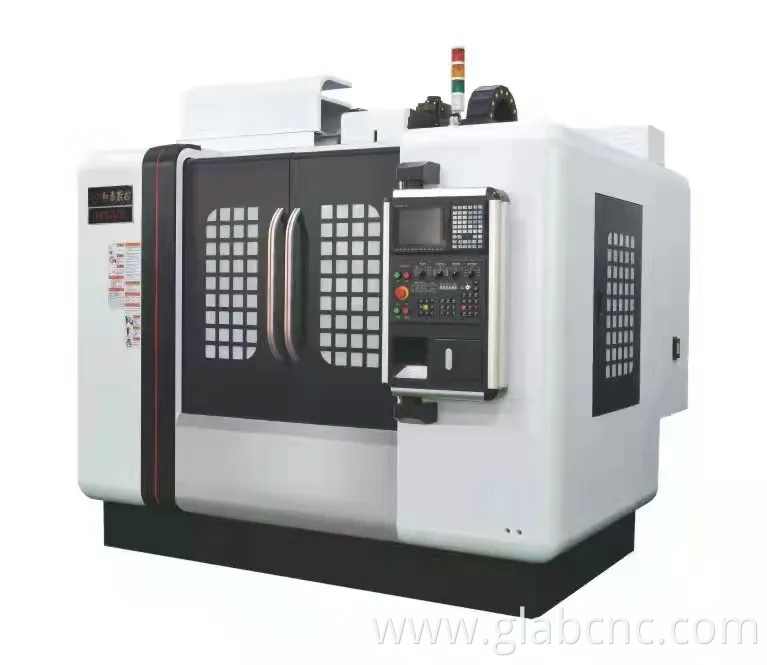

VMC 1160# / Vertical Machining Center 1160#
high-speed moving linear heavy-duty roller guideway pair, stability of machine tool control
| Machine model | unit | VMC1160 |
|---|---|---|
| X/Y/Z travel | mm | 1100/600/600 |
| distance from spindle nose to table surface | mm | 120-720 |
| distance from spindle center to column surface | mm | 650 |
| spindle power | kw | 11/15 |
| spindle speed | rpm | 10,000 |
| spindle taper | BT40(Φ150) | |
| positioning accuracy | mm | ±0.003 |
| repeat positioning accuracy | mm | ±0.001.5 |
| table size | mm | 1200×600 |
| Max. Table loading | kg | 900 |
| T Slot | 5-18-100 | |
| X/Y/Z rapid speed | M/min | 36/36/36 |
| cutting speed | Mm/min | 1-10000 |
| X/Y/Z axes ball screw diameter | Φ40 | |
| X/Y/Z axes servo motor power | kw | 3.0/3.0/4.5 |
| Linear width/type/guideway no./slider no. | X: 45mm/roller/2/6 | Y: 45mm/roller/2/4 | Z: 45mm/roller/2/6 | |
| Control | Depends customer | |
| Max.power consumption | kw | 25.0 |
| air | Mpa | 0.5-0.7 |
| power | 380V/220V/415V/50(60)Hz/3PH | |
| ambient temperature | 0ºC-42ºC | |
| relative humidity | ≤ 80% | |
| machine Net weight | Ton | 6.5 T |
| Overall dimension | mm | 3200x2550x2600 |
Product Categories : CNC Machining Center > Vertical Machining Center
